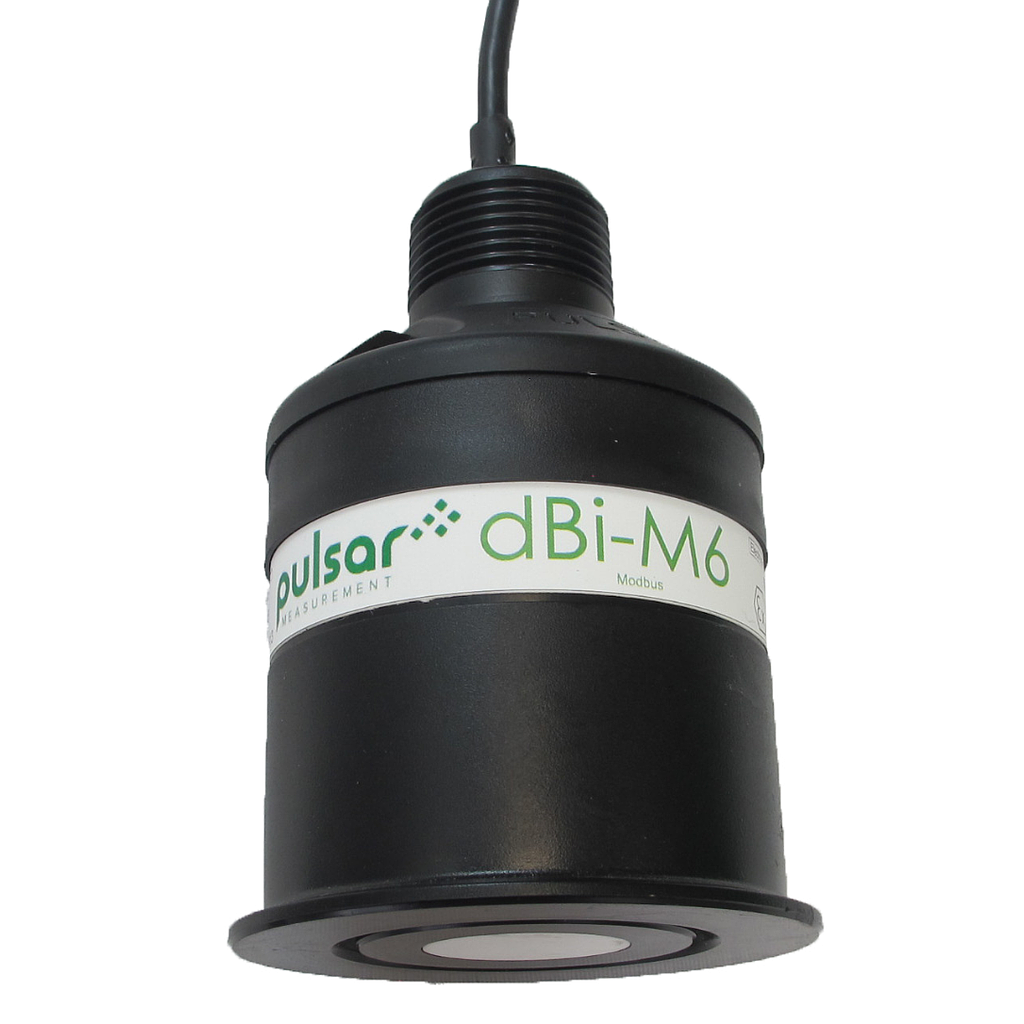

Sensor Body Dimensions: 86 mm D x 121 mm H (3.4 in x 4.8 in)
Weight: 1.2 kg (2.7 lb)
Measurement range: 300 mm to 6 m (11.8 in to 19.7 ft)
Beam Angle: <10°
Effective Beam Angle (using DATEM): 3°
Accuracy: 4 mm (0.2 in)
Resolution: 2 mm (0.08 in)
Sensor Body Material: Valox 357 PBT
Cable Lengths: Standard: 5 m, 10 m, 20 m, or 30 m (16.4 ft, 32.8 ft, 65.6 ft, or 98.4 ft)
Optional up to 150 m (492.1 ft) maximum (increments of 10 m (32.8 ft) only)
Mounting Connection: 1” BSP or 1” NPT
Enclosure Protection: IP68 / NEMA 6P
Max. And Min.Temperature (Electonics): -40 °C to +80 °C (-40 °F to +176 °F), options for front thread and flange mounting
Input Voltage Range: 5-15 V DC
Output: Modbus RTU via RS-485
Current Consumption: Average 14 mA, 0.006 mAh per measurement.
Boot Time: 1 second for the first measurement
Temperature Compensation: Automatic, internal temperature sensor, ± 0.5 °C/°F
Communcations Protocol: Modbus RTU
