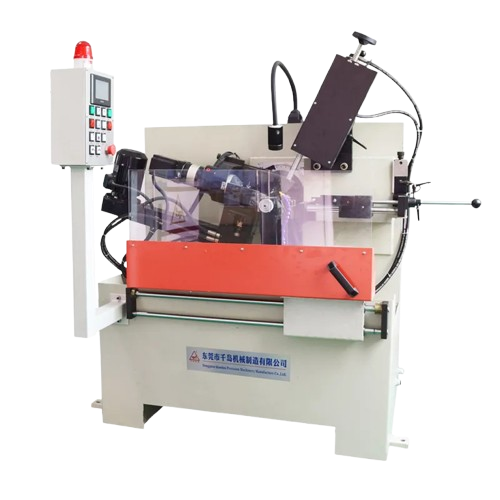

Qian Dao GD-020 High Precision Automatic Circular Saw Blade Sharpener (80-800mm, 0.5–6 mm/s)

Saw blade capacity: 80-800mm

Hole size: 10-220mm

Saw blade thickness: 1-7mm

Tooth distance: 7-100mm

Tooth surface angle: 5 degree ~+30 degree

Tooth tip back angle: 6-45 degree

The left and right side of the pitch: 45 degree of the tooth surface

Edge grinding stroke range: Max 25mm teeth / min

Edge grinding speed: 0.5-6mm/s

Working speed: Max 20 teeth / min

Wheel size: 125mmx32mm

Negative chamfer grinding: -27 degree

The grinding head rotating angle: 90 degrees and 180 degree

Wheel line speed: 26m/s

Coolant pump flow: 50L/min

Coolant tank volume: 85L

Voltage: 3 phase 380V

Machine weight: 900KG

Product details

The design of the machine is based on the characteristics of the same type, and the advantages of the same type are absorbed and analyzed, and some improvements are made at the same time.

1 preset multiple sets of teeth type, a key multifunctional operation.

The 2 steps can be completed in one time, numerical control grinding, arbitrary tooth type, can improve the efficiency of 3 times, improve the type of tooth extraction operation, improve the precision and extend the service life.
