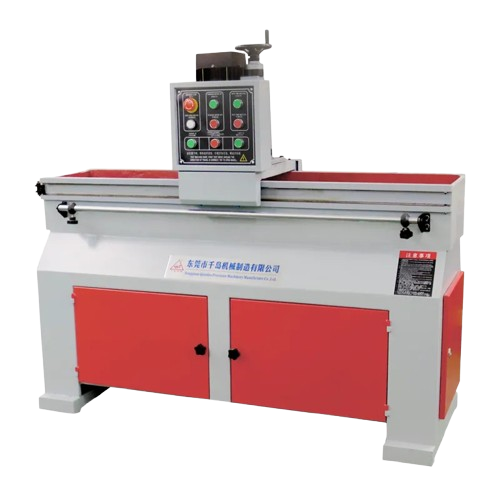

Qian Dao GD-1000 Automatic Straight Blade Sharpening Machine (2800 Rpm, 1000mm)

Max Grinding Wheel: 1000mm

Main Motor Power: 1.5kw

Effective Gringding Length: 1000mm

Feed power of motor: 60w

Grinding Cutter Adjusable: 0-90degree

Grinding Wheel Specification: 32x50x125mm

Water Pump Motor: 40w

Voltage: 380V

Wheel Head Rotate Speed: 2800r/min

Weight: 370kg

Product details

GD-1000 Automatic straight blade Sharpening Machine is mainly used to grind various angles of straight tool cutters. Suitable for various types of tools in the furniture, printing, textile and other industries, can also be used for HSS tools oblique cut. The machine is mainly consist of 6 parts: machine body, working table, operating slide, motor, grinding head, electric part. Each part is compact in structure and beautiful in appearance. Can grind 4 blades at the same time. The grinding head adopts automatic feeding with the stable average speed, to ensure the unique advantages of the tool, such as equal height. It’s widely used in the production of furniture and straight knives industries.
