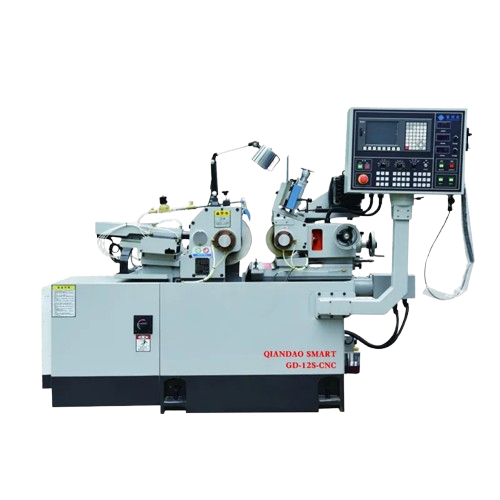

Qian Dao GD-12 CNC High Precision Centerless Grinder Machine (Ø0.5–40 mm ,7.5 HP, 1950 Rpm)

Processing workpiece diameter: φ0.5-40mm

Grinding wheel size: φ305x150x120mm

Guide wheel size: φ205x150x90mm

Grinding wheel speed: 1950rpm

Guide wheel size speed: 0-300rpm

Wheel drive motor: 7.5HP

Guide wheel drive size : 2.0kw

Hydraulic pump drive motor: 1HP

Cooling pump drive motor : 1/8HP

Guide wheel feed hand wheel: 3.5mm/circle 0.02/scale

Guide wheel fine adjustment hand wheel: 0.1mm/circle 0.001/scale

Slide feed under the workbench: 0.001mm

Trim feed handwheel: 1.5mm/circle 0.01/scale

Guide wheel inclination angle: ﹢5°~-3°

Rotation angle of guide wheel: ±6°

Machine size: 1800x1400x1450

Weight: 1700KG

Product details

CNC High Precision Centerless Grinder Machine GD-12 main body and nine major components are made of Meehanite high-grade cast iron FC-30 at one time. After artificial normalization heat treatment, and then natural aging treatment. Nine components are processed by YASDA, MITSUI SEIKI, TOSHIBA, ELB and other equipment in one clamping process. The precision size can reach the micron level, ensuring the high precision of the basic components of the equipment.

The original Taiwan spindle is made of SNCM-21H alloy steel. After quenching and tempering, carburizing heat treatment and then computer-controlled cryogenic treatment, the surface hardness reaches above HRC-62°, and the effective hardened layer on one side reaches above 1.5mm. The spindle adopts dynamic Oil film spindle.
