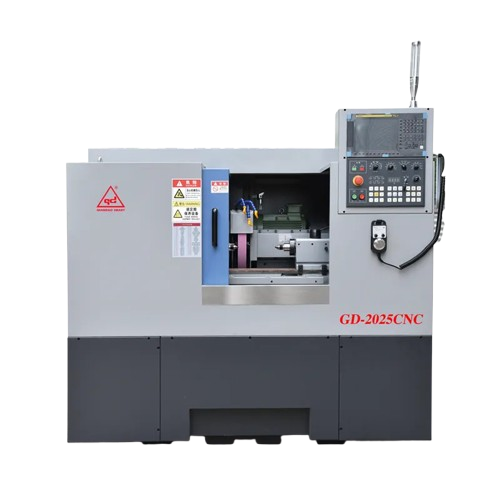

Qian Dao GD-20P25CNC Precision Cylindrical Grinder (200 mm, 35 m/s,+9/-3°)

The maximum rotation diameter of the workbench: 200mm

The longest distance between two peaks: 250mm

Maximum load between two centers: 40kg

Grinding wheel size (diameter x thickness x hole diameter):405x38x127, 405x50x127 mm

Line speed: 35m/s

X axis feed speed: 6m/min

Grinding wheel head feed stroke: 200mm

X-axis minimum setting unit: 0.001 mm

Headstock spindle speed: 0-600rpm

Headstock spindle: Centering (optional with simultaneous movement)

Headstock thimble: MT3

Tailstock automatic retractable distance: 30mm

Tailstock thimble: MT3

Z axis rapid movement speed: 8mm

Z axis minimum setting unit: 0.001mm

Maximum moving stroke of worktable: 250mm

Table rotation angle:+9/-3°

Grinding wheel spindle motor: 3.75Kw

X axis feed motor: 1.5kw

Z axis feed motor: 1.5kw

Headstock spindle motor: 1.1kw

Cooling water motor: 0.25 kw

Tailstock oil pump motor: 1Hp

Controller: FANUC/Delta

Mechanical weight: 2450 Kg

Product details

Grinding wheel dressing device can be selected to achieve precise CNC dressing, suitable for grinding of ordinary outer circular surface, tapered surface, formed outer circular surface, R surface and groove.

Equipped with imported and domestic active measuring devices to realize the full closed-loop control of grinding processing.

Full-access control functions such as fault self-diagnosis and abnormal alarm，Can be worth the manipulator automation system, one person can operate 2-3 sets of equipment at the same time, can realize fully automated assembly line operation.

The overall structure of the grinding system is compact, maximizing the use of machine space, and excellent comprehensive cost performance.
