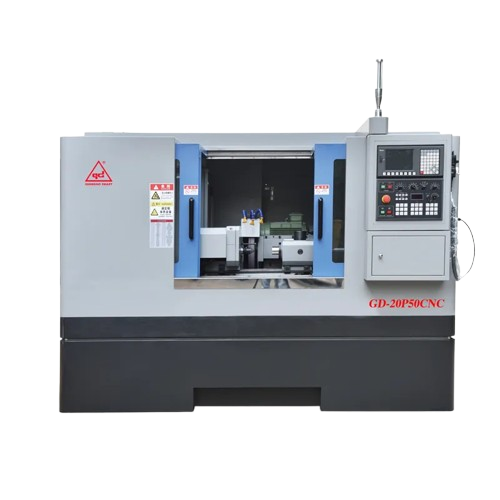

Qian Dao GD-20P50CNC Precision Cylindrical Grinder (200 mm, 35 m/s,+9/-3°)

The maximum rotation diameter of the workbench: 200mm

The longest distance between two peaks: 500mm

Maximum load between two centers: 50kg

Grinding wheel size (diameter x thickness x hole diameter): 405x38x127, 405x50x127 mm

Line speed: 35m/s

X axis feed speed: 6m/min

Grinding wheel head feed stroke: 200mm

X-axis minimum setting unit: 0.001mm

Headstock spindle speed: 0-600rpm

Headstock spindle: Centering (optional with simultaneous movement)

Headstock thimble: MT5

Tailstock automatic retractable distance: 40mm

Tailstock thimble: MT4

Z axis rapid movement speed: 8mm

Z axis minimum setting unit: 0.001mm

Maximum moving stroke of worktable: 500mm

Table rotation angle:+9/-3°

Grinding wheel spindle motor: 4KW

X axis feed motor: 1.5KW

Z axis feed motor: 1.5KW

Headstock spindle motor: 0.75KW

Cooling water motor: 0.25KW

Tailstock oil pump motor: 1HP

Controller: FANUC/Delta

Mechanical weight: 2500kg

Product details

The grinding wheel is fed by a combination of precision ball screw and AC servo motor. The guide rail is equipped with an automatic lubrication system, which runs smoothly and has excellent positioning accuracy and repeatability.

The main shaft of the grinding wheel is a bearing structure with 4 fronts and 2 rears, which can carry high-load grinding and is more conducive to grinding superhard materials such as tungsten steel and ceramics

The machine adopts FANUC CNC control system, which can realize continuous dressing of the grinding wheel during the grinding process, automatic compensation, and fully automatic processing
