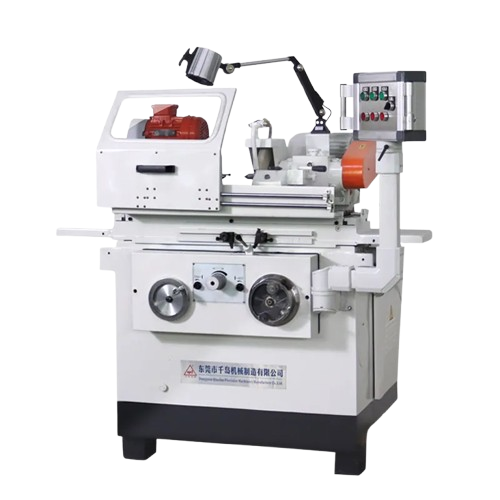

Qian Dao GD-3080A Internal And Cylindrical Grinding Machine (Φ2-Φ80mm, 0.1~4m/min)

Grinding diameter of OD/ID: Φ2-Φ80mm

Griding lenth of OD/ID: 300mm

Center height: 115mm

Max workpiece weight: 10kg

Workbench speed: 0.1~4m/min

Grinding wheel line speed: 35m/sec

Max travel of workbench: 320mm

Workbench rotation range: -3°~+7°

External grinding wheel size:

MaxΦ250x25xΦ75mm

MinΦ180x25xΦ75mm

Tail stock taper morse: NO.3 morse

Machine dimension: 1360x1240x1000mm

Machine weight: 950kg

Motor total power: 3.16kw

Product details

This machine is mainly used for grinding cylindrical and conical surfaces of small shafts, round sleeves, needle valves, plungers, etc. Workpiece installation can be achieved with centers, three-jaw chuck, spring chuck and other special attachments. Suitable for processing small parts in the industries of instrument, automobile, electromechanical equipment, bearing, textile, shipbuilding, sewing machine, machine tool, etc

The longitudinal movement of the table can be hydraulic and manual. The grinding head and headstock can be rotated. The hydraulic system uses gear wheels with good characteristics

The machine is suitable for mechanical repair shops, small and medium tools batch production units

The distance between centers is 300mm

GD-3080A headstock through-hole can be customized up to 40mm, unidirectional four-jaw chuck can be adjusted.
