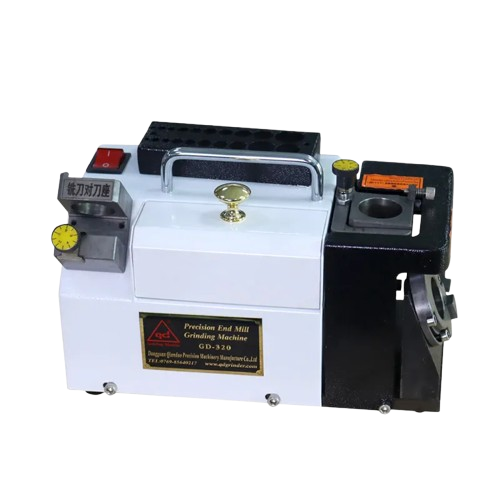

Qian Dao GD-320 End Mill Grinder Machine (Φ3-Φ20mm, 4500 rpm)

Grinding range: Φ3-Φ20mm

Collets size: Φ(4,6,8,10,12,14,16,18,20) Can choose the special collet.

Power: 220V 50Hz/60Hz 300W

Speed: 4500 rpm

Grinding wheel: SDC for carbide(CBN is optional for HSS)

Net weight: 11kg

Product Details

The machine can quickly grind 2, 3, 4, 6 blades carbide and HSS universal end milling cutter

Suitable for straight shank milling cutter, grinding accurate and quick, simple operation, easy grinding with no special skills required

One grinding wheel can complete nose angle, front and back bevel angles grinding of milling cutter of different diameters and different quantity of blades

Installed grinding wheel can complete all processes, accurate angles, long service life, great cost saving, improved use efficiency

According to different cutting materials, the sharpeness of the cutting edge can be adjusted to improve the life of the milling cutter, cutting efficiency and machining accuracy.
