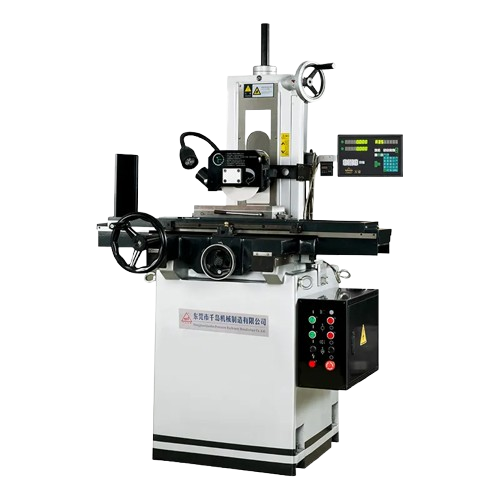

Qian Dao GD-450G Precision Surface Grinder Machine (1.5HP, 2850/3600 Rpm)

Table size: 450*150mm

X axis max travel: 485mm

Y axis max travel: 180mm

Maximum grinding length : 460mm

Maximum grinding width : 160mm

The max center of wheel to table: 380-400mm

The max load: 60 kg

Table T-slot: 17*1 (mm×N)

Y axis hand wheel feed(1 grid/1 circle) : 0.02/5mm

Flat processing parallelism: 0.001/400mm

Wheel size: 180*16*32mm

Wheel speed（50HZ/60HZ）: 2850/3600 R.P.M

z axis hand wheel feed (1 grid/1 circle): 0.005/1mm

Spindle motor: 1.5HP

Machine dimensions: 1300×1100×1900mm

Weight: ≈930kg

The GD-450G equiped Taiwan’s high-precision spindle with high speed and strong stability. Taiwan high-precision screw, light, and smooth operation.
