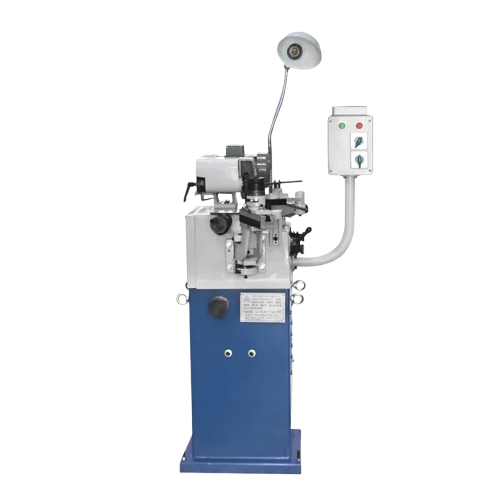

Qian Dao GD-450Q Automatic Saw Blade Grinder (Φ100 ~ 450mm, 4200Rpm)

Saw blade diamter: Φ100 ~ 450mm

Pitch range: Max 25mm

Depth of teeth: Max 8mm

Cutting angle: 0°-30°

Feed speed: 45-180teeth /min

grinding wheel diameter: 70-150mm

Driver motor: 1/2Hp

Speed of Grinding wheel: 4200rpm

Net weight: 145Kg

Product details

All iron casting of this machine are made of spheroidal graphite cast iron (FCD-45) to ensure accuracy and increase wear resistance

All the adjustment rods are carefully arranged to easily adjust the cutting angle, back clearance angle, tooth depth and pitch, so the saw blade can be sharpened quickly and accurately

Used stepless belt pulley, the required speed can be adjusted with the changes of pitch

The wheel head can swing up and down, can easy grind the chamfer without changing the grinding wheel

The thickness of the saw blade can be easily adjusted, there is a scale that directly shows the thickness of the adjustment

The transmission part is driven by the grinding wheel motor and the structure helps to achieve a reliable and safe drive

The end of the feed gripper has ultra-hard tungsten carbide, that minimizes the wear and achieves precise feeding

Select the guide wheel according to the number of teeth

Can grind triangular and circle-arc teeth

Saw blade grinding base can be customized for grinding minimum diameter 40mm.

Note:

GD-450Q Automatic circular saw blade grinding machine can sharpen the circular saw blades (dia.100~450mm, thickness 8mm) and other cutting tools. This machine is mainly for HSS saw blade grinding, but also capable of carbide tipped saw blade grinding (customized grinding wheel required).
