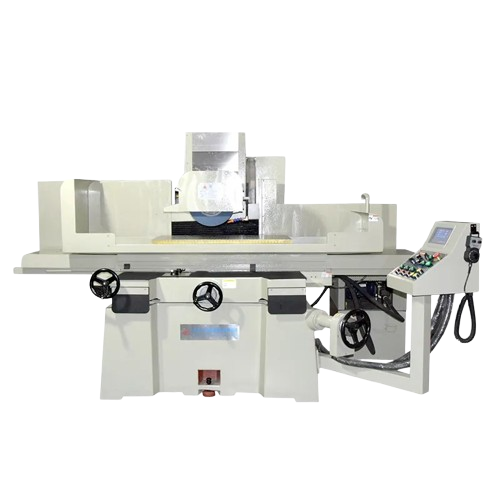

Qian Dao GD-510DHD Surface Grinding Machine (1450/1740 Rpm, 1000*500mm)

Table size（x*y):1000*500mm

X axis max travel: 1200mm

Y axis max travel: 560mm

The max center of wheel to table: 500mm

The max load: 700Kg

Table T-slot: 18*3 mm×N

Table speed: 5-25m/min

Y axis automatic feed: 0.1-10mm

Y axis fast moving speed: 990/1190 mm/min

Wheel size: 350*40*127 mm

Wheel speed（50HZ/60HZ): 1450/1740 R.P.M

Z axis fast moving speed: 230mm/min

Spindle motor: 7.5*4 HXP

Z axis motor: 750W

Hydraulic motor: 3*6HXP

Cooling motor: 90w

Front and rear drive motors: 80W

Machine size (length × width × height): 2930x2250x1890mm

Weight: ≈3700 Kg

Product details

1. The main castings of the surface grinder are made of high-grade cast iron. After annealing treatment and vibration aging treatment, the internal stress of the castings is removed, the stability of the castings is greatly improved, and it is not easy to deform

2. The material is thick and the fuselage is stable, which meets the rigidity requirements of heavy cutting and fine grinding

3. The guide rails are affixed with high-grade wear-resistant glue, and the precision is shoveled to ensure long-lasting precision

4. The swing of the spindle arm end is 0.003mm

5. Adopt precision ball screw, which is lighter, more accurate and more durable

6. The main components of the hydraulic system are all independently designed, with low vibration and low noise
