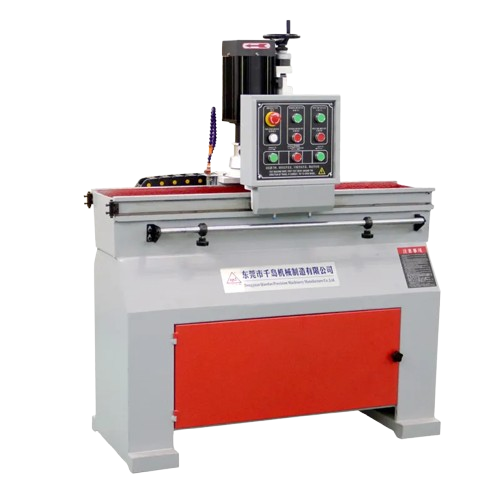

Qian Dao GD-700 Automatic Linear Sharpening Machine (2840 Rpm, 700mm)

Max travel of the wheel (mm): 700

Effective grinding length (mm): 650

Feeding motor power (w): 60

Tool holder adjustable bevle: 0-90°

Wheel size(mm): 32×50×125

Water Pump motor (w): 40

Wheel head speed (r/min): 2840

Machine dimensions(mm): 1210×850×1470

Wheel head power (KW): 1.5

Machine weight (kg): 230

Grinding thickness: 2-25 mm

Product details

This machine is mainly used to grind various angles of straight knife cutters. Suitable for various types of tools in the furniture, printing, textile and other industries, can also be used for HSS tools oblique cut. The machine is mainly consist of 6 parts: machine body, working table, operating slide, motor, grinding head, electric part. Each part is compact in structure and beautiful in appearance. Can grind 4 blades at the same time. The grinding head adopts automatic feeding with the stable average speed, to ensure the unique advantages of the tool, such as equal height. It’s widely used in the production of furniture and straight knives industries.
