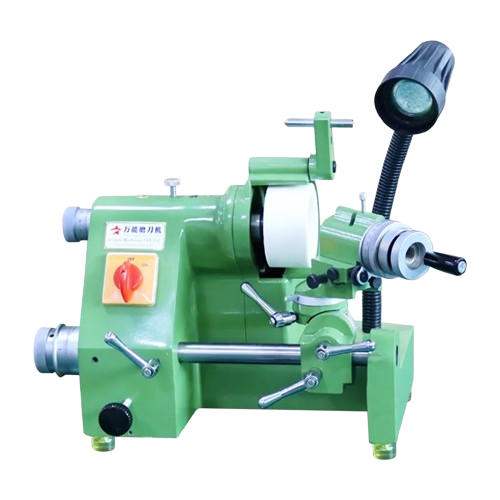

Qian Dao GD-U2 Universal Cutter Grinder (375W,200 RPM)

Voltage: 220V/380V(110V Voltage can be customize)

Wheel: φ100x20x50mm

Speed of spinde: 5200 RPM

Motor Power: 375W

Diameter: 3-16mm

Longitudinal travel of cutter index: 140mm

Cross travel of cutter index: 18mm

Longitudinal travel of Spindle: 6mm

Grinding cone angle range: 0°~180°

Grinding negative angle range: 0°-52°

Grinding bace angel range: 0°-44°

Net weight: 45KG

Dimension(L*W*H): 555x450x430mm

Product Details

Universal cutter grinder GD-U2 is suitable for grinding different diameters, shapes and angles of engraving knives, round knives, straight shank milling cutters, gravers, die milling used on computer engraving machines, engraving millers, machining centers, engraving machines, dividing machines, marking machines, etc. Easy to operate, high precision, great quality-price ratio. Projector can be optional.

Product configuration introduction

About grinding wheel:White corundum and red corundum grinding wheels are suitable for grinding high-speed steel knives, alloy grinding wheels are suitable for grinding tungsten steel and carbide tools.Resin grinding wheel is suitable for fine grinding of knives. Alloy grinding wheels and resin grinding wheels have different particle sizes to choose from (such as 100#, 150#, 180#, 200#, 320#, 400#, 600#, 800#)

About Chuck : Metric system is available in 3/4/5/6/8/10/12/14/16mm

Inch specifications are 1/8/, 3/16, 1/4, 5/16, 3/8/, 1/2, 5/8, 3/4, 7/8

We provide two basic styles of yellow and green, and two basic voltages of 380V and 220V, and we can customize 110V voltage according to needs
