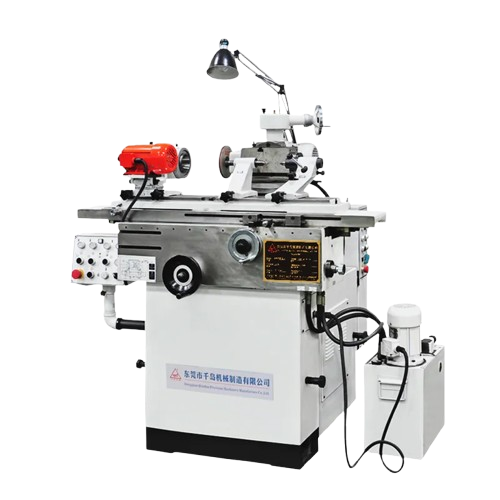

Qian Dao MQ6025YA Hydraulic Tool Grinding Machine (3.15KW, 4000Rpm)

Head stock and tail stock top maximum distance: 545mm

The max distance of the longitudinal tail frame top: 650mm

Max grinding diameter: 250mm

Apex center high: 130mm

Grinding max lenth of O.D: 270mm

Workbench manual travel: 400mm

Workbench hydraulic travel: 400mm

Workbench max rotating angle: ±45°

Grinding wheel rack moving travel horizontal/longitudinal: 230/250mm

Grinding wheel rack lifting speed: 280mm/min

The distance from the grinding wheel shaft to the working table face(Max/Min): 398/48mm

Horizontal rotation angle of grinding wheel frame: 360°

Tilt angle of grinding wheel frame: ±15°

Grinding wheel spindle speed: 4000rpm

Machine total power: 3.15kw

Machine size（L×W×H): 134x132x132cm

Net weight: 1150Kg

Product details

MQ6025YA Hydraulic Universal Tool Grinding machine are suitable for high speed steel, hard alloy or other materials,It is also easy to grind the outer circle, the plane groove and the forming surface and so on.If equipped with special accessories, but also a variety of grinding gear, worm gear hob, forming cutter, ball milling cutter, drill, reamer cone etc..This series machine tool grinding wheel rack mechanism is flexible，can do 2 dimensional adjustment，work head to do two-way rotary，no. 50 taper hole with international standards easy to install a variety of tools fixtures.The working table is supported on the ball guide rail with preload, and the operation is smooth and precise. The working table can be operated by hand or by stepless speed regulation hydraulic drive.

Manual operation is unnecessary with the MQ6025YA, the workbench also can be hydraulically auto adjusted for optimal results. This lathe tool is suitable for a wide array of machinery manufacturing ,tool rooms ,mold rooms ,scientific research departments and places where a multi-purpose machine is required.
