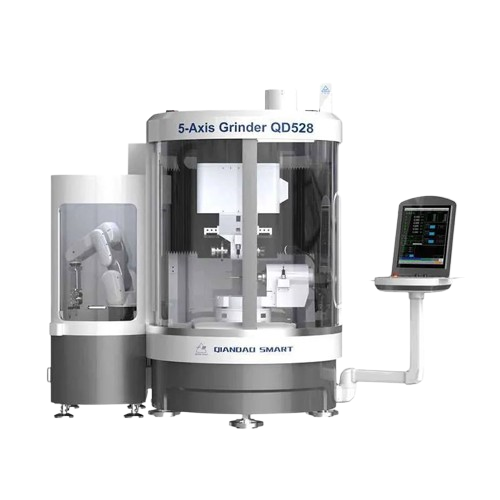

Qian Dao QD528 CNC Tool Grinder (Ø0.5–Ø12 mm)

CNC system: NUM （Flexium+）

Processing workpiece diameter: Φ0.5mm-φ12（Disc <φ200）

Cutting edge length: <180mm

Swivel Angle A/B-axis Stroke: A-axis：0-∞ B-axis：0-360°

Spindle Power: 15kw (7000r/min)

X/Y Power: 3kW 1166N thrust

Max. Workpiece weight: 10Kg

Linear axis positioning accuracy: ±0.002mm

A-axis repeat positioning accuracy: 4 arc sec

Workable travel X axis/Y-axis/Z-axis: X：590/ Y：320 / Z：250

Total power: 25kw

Machine weight: 4.5T（without robot）

Robotic Loading/Unloading: Optional(500kg)

B-axis tool holder interface: BT50

End-Tooth Grinding Length: <140mm

Max. Workpiece Length: <220mm

B axis power: 1.2kw /100rpm/230 Nm

A axis power: 0.6kw/200rpm/38 Nm

Z axis power: 2.9kw/1500rpm/18.6Nm

Tool holder: Can be equipped with W20/W25 hydraulic tool holders, SCHUNK or SCHAUBLIN tool holders (customizable per customer requirements)

Linear axis repeat positioning accuracy: ±0.001mm

B-axis repeat positioning accuracy: 4 arc sec

Voltage: AC380V 50HZ three-phase

Dimensions (L x W x H):

2080×2150×2400mm（Including robotic arm）

1570×2150×2400mm（Excluding robotic arm）

Precision of machining tool contour: ±0.005mm

Product details

The QD528 is a 5-axis 5-link CNC tool grinder which is independently R&D by Qiandao company. It is an excellent tool grinding center suitable for the production or grinding of milling tools, drilling tools, forming tools, etc.

The machine features a user-friendly Human-Machine Interface, high-rigidity cast iron construction with secondary aging treatment, ensuring superior stability.

The machine adopts direct drive frequency grinding spindle with high rigidity and precision. The spindle is 15KW big power. and the grinding wheel flange can be equipped with 2 to 4 grinding wheels at the same time, which can satisfy the grinding process of the front, back and end faces of the tool in one clamping need.

The workpiece spindle adopts dd direct drive. It is equipped with W25/W20 precision clamping system matching with Schauberlin precision collets, the workpiece is pneumatically clamped.

The machine tool is equipped with a NUM Flexium+ 5-axis linkage control system and NUM servo drives, incorporating Renishaw high-precision measuring probes, THK precision linear roller guides, a Z-axis C3-grade ball screw with FAGOR grating scale, and HIWIN linear motors with FAGOR scales on the X/Y axes. To further ensure dimensional accuracy of machining tools, the rotary axes adopt dual direct-drive (DD) motors with full closed-loop control, guaranteeing the machine’s superior performance and exceptional working precision.

The machine adopts totally enclosed frame(front sliding doors, left, right and back maintenance doors), hand-hold electronic hand wheel, special start and stop button, foot switch, automatic spindle cooling and workpiece coolant control device, automatic lubrication and mist absorbing devices, alarm buzzer, electrical box cooling air conditioner. Operation and maintenance are simple and convenient.
