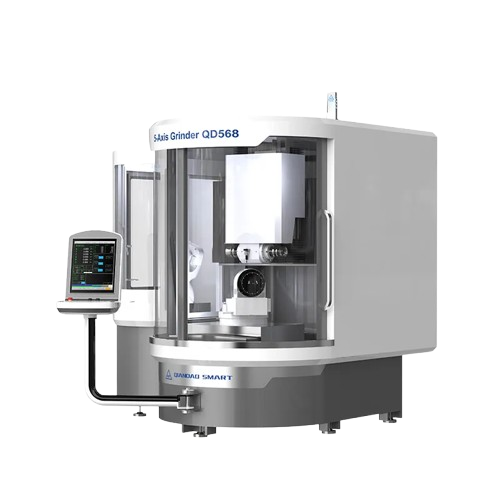

Qian Dao QD568 CNC Tool Grinder (Φ3mm-φ32)

CNC system: NUM( flexium +)

Workpiece grinding diameter:Φ3mm-φ32（Plate<φ320）

Grinding edge length: <300mm

A/B axis rotation range: A axis：0-∞ B axis：0-360°

Electric spindle power:

24kw/(6000r/min,51Nm)

10000r/min electric spindle can be customized

X/Y Power: 1.3kw/1500rpm/8.34Nm

Maximum tool weight: 20Kg

Linear axis positioning accuracy: ±0.002mm

A-axis repeat positioning accuracy: 4 arc sec

Worktable travel X axis/Y axis/Z axis: X：840 / Y：500 / Z：310

Total machine power: 35kw

Machine weight: 5.5T

Robot loading and unloading: Optional

A-axis tool holder interface: BT50

End tooth grinding length: <200mm

Maximum workpiece length: <350mm

B-axis power: 1.2kw /100rpm/230 Nm

A-axis power: 0.6kw/200rpm/120 Nm

Z-axis power: 2.9kw/1500rpm/18.6Nm

Tool holder: Can be equipped with W20, W25 hydraulic tool holder, SCHUNK tool holder, SCHOBLIN tool holder (optional according to customer requirements)

Linear axis repeatability: ±0.001mm

B-axis repeat positioning accuracy:4 arc sec

Power supply: AC380V 50HZ Three-phase

Machine tool dimensions:

2380×2420×2500mm（Including robot ）

1870×2420×2500mm（No robots included）

Machining tool profile accuracy:±0.005mm

Product details

5-axis CNC tool grinder, suitable for grinding and regrinding large diameter rotary cutting tools, can complete the entire grinding and regrinding process in one clamping, and tool materials include high-speed steel, solid carbide, ceramics, etc.The diameter range of machinable round bar cutting tools is 3mm to 32mm, with a maximum length of less than 200mm for end tooth grinding and less than 350mm for circumferential edge grinding; The diameter of the disc type cutting tool is less than 320mm.5-axis 5-linkage grinding ball cutter, round nose cutter, forming cutter, etc., suitable for mass production of standard cutting tools and small batch production of non-standard cutting tools.
