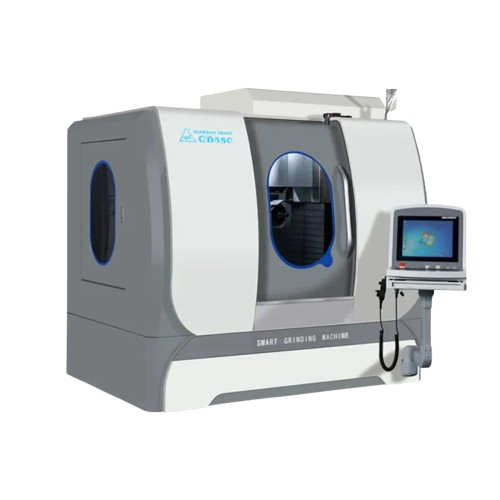

Qian Dao QD580 5-Axis CNC Tool Grinder (Ø3–Ø32 mm, 200 mm)

Grinding tools range (Round bar workpieces): Φ3-32mm

Max. Processing workpiece diameter （disc shaped tool) : 200mm

Max. processing workpiece length: 370mm

Max. processing workpiece groove depth: 20mm

Max. Work piece weight: 20Kg

Grinding head Max. Power(electric spindle): 24KW

Grinding wheels(CBN/diamond): Φ50～Φ200mm

Grinding head spindle rotation speed(frequency regulation): 1000-6000rpm

Vertical lifting stroke of workpiece head frame (Z axis): 350mm(-100-250)mm

Workable travel X axis/Y-axis/Z-axis: X：520 / Y：540 /Z：350

Linear axis quick travel speed: 15m/min

Workpiece spindle rotation speed（A-axis): 200rpm

Rotation range of A-axis: ∞

Taper of main shaft hole of axis A: ISO50

Pneumatic clamping range: Φ3～Φ25mm

SCHUNK clamping workpiece range: Φ6～Φ32mm

Grinding head swing Max rotation speed(C-axis): 30rpm

Rotation range of C-axis: 320°（-225~95°）

Workpiece spindle center height: 135mm

Workpiece spindle radial runout: ≤0.005mm

Grinding head spindle radial runout: ≤0.005mm

Air cylinder clamping force adjusting range: 800-1000kg

Linear-axis resolving power: 0.001mm

Rotation axis resolving power: 0.001°

Cooling workpiece flow: 60~80L/min

Cooling workpiece oil pressure: 0.5~0.6MP

Voltage: AC 380V 50HZ 3 phase

Total power: 32 KW

Machine dimensions: 2200×1600×2400mm

Machine weight: 5T

Product details

QD580 5-axis CNC tool grinder is a high-efficiency grinder that is good at making non-standard tools.

It is suitable for producing or grinding various diameters of milling tools, drilling tools, forming tools, etc.

The machine can be equipped with automatic loading and unloading and anticollision system, precision clamping mechanism and innovative tool precision support system.

Machine Body:

Linear axis X, Y, and Z adopt linear guide drive with ball-screw. It is HIWIN brand from Taiwan.

It has a distance between centres of 520 millimeters/540 millimeters and a centre height of 350 millimeters.

The fuselage bases(X carrier, Y carrier, Z carrier, and Z column) are all made of artificial granite, with unmatched thermal stability and excellent vibration absorption.

Double grinding spindle head(C-axis):

Equipped with 24KW high powerful precision direct drive grinding head.

Double grinding spindle head can be installed with 4-8 pieces of flange grinding wheels.

It can complete the clamping and grinding of the front, back and end face of the tool at one time.

The workpiece spindle(A-axis):

The rotation spindle A-axis adopts direct-drive conversion.

This machine is equipped with W25 precision holder which matches with SCHAUBLIN collet.

The clamping method of the workpiece can be pneumatic.
