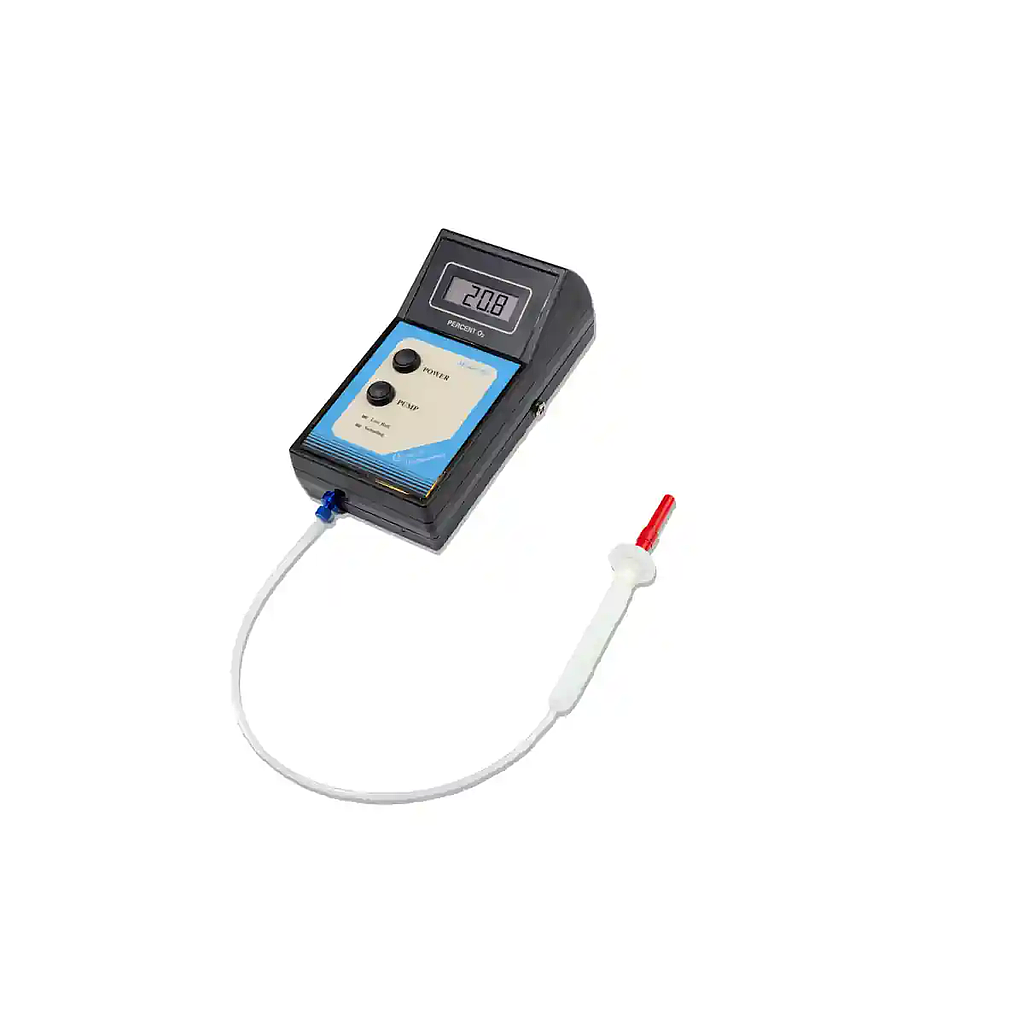

QUANTEK INSTRUMENTS 901 Headspace Oxygen Analyzer (0.0 ~ 100%)

Expected Lifetime (oxygen): 4-5 years

Oxygen Range: 0.0 to 100%

Oxygen Sensitivity: 0.001

O2 Resolution: 0.001

Analog Output: Not Available

Resolution: 0.1% Oxygen

Accuracy: : +/- 0.1% (below 10% oxygen).

Drift: less than 0.4% per year

Oxygen Sensor Type: Proprietary electrochemical cell, expected lifetime 4-5 years

Response Time: 15 seconds to T95

O2 Sensor Lifetime: 4-5 Years

O2 Sensor Body: ABS Resin

Sample Connection: Sample Probe

Sample Method: Pump

Sample Pump: Internal, draws ~5cc/sec, with 2-12 second adjustable timer (on side of unit)

Pump Timing: 2-12 second adjustable pump time, potentiometer on side of analyzer

Minimum Sample Required: 10cc

Sampling Assembly: Probe with female luer connection for filter and needle, low volume PTFE tubing

Oxygen Calibration Controls: SPAN adjustment, zero adjustment

Instrument Calibration: Calibrates with room air; SPAN adjustment on side; ZERO adjustment on side

Exhaust port: Vents to air

Power Supply: Four "AA" NiMH rechargeable batteries; auto shut-off after 45 minutes idle. 100-240V (50-60Hz) Charger included, with US or international interchangeable plug adapter (upon request)

Backup Power: Four "AA" alkaline batteries (not included)

Battery Operation: Included

Input Voltage: 100-240V, 50-60Hz

Battery Life: 10-14 hours before recharging

Measures: O2, CO2: O2

Form Factor: Portable

Size: 8 x 4 x 1.8 in. (200 x 100 x 40 mm)

Weight: 1 lb. (450 gms)

Warranty: 2 years, parts and labor

Standards: CE, RoHS

Included Consumables: 200 foam septas, 2 luer fit needles, 2 particulate filters, 2 liquid block filters

Included Documentation: Owners manual (includes operating instructions with detailed calibration instructions, calibration certficate, precautions), NIST calibration certificate

Origin of Goods: Our products are manufactured in the U.S.A.

Products by Gas: Oxygen

Products by Applications: Headspace / Package

Includes everything you need to begin sampling:

Sample probe

Starter pack of 200 foam septas

2 needles.

2 small moisture and particulate blocking filters,

Charger – (International compatible 100-240V, with EU / AUS / UK / NA mains prongs)

Manual
