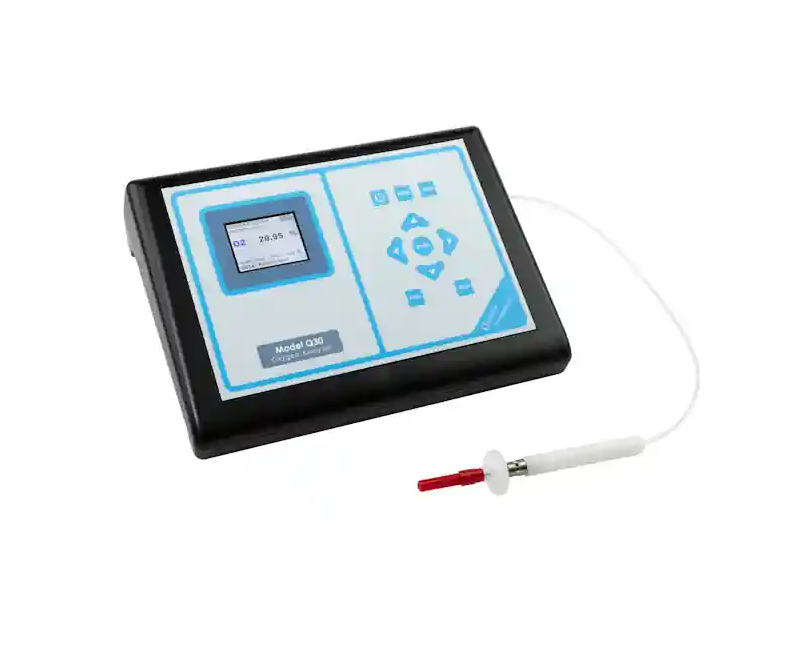

QUANTEK INSTRUMENTS Q30 Benchtop O2 Analyzer (0.00 ~ 100%)

Oxygen Range: 0.00 to 100%

Oxygen Sensitivity: 0.0001

O2 Resolution: 0.0001

Analog Output: 0-5V

Resolution: 0.0001

Accuracy: +/- 1% of the reading or 0.1%, whichever is greater

Drift: less than 0.4% per year

Oxygen Sensor Type: Proprietary Electochemical

Response Time: 20 seconds to T95

O2 Sensor Lifetime: 4-5 Years

O2 Sensor Body: ABS Resin

Sample Connection: Sample Probe

Sample Method: Pump

Sample Pump: Internal, draws ~5cc/sec

Pump Timing: 2-20 seconds, continuous, or cycling on/off, programmable

Minimum Sample Required: 15cc

Sampling Assembly: Probe with luer connection for tri-beveled needle, PTFE tubing

Oxygen Calibration Controls: Digital Keypad Adjustment

Instrument Calibration: EasyCal calibration

Exhaust port: Vents to air

Power Supply: 100 to 240 VAC, internationally compatibile

Battery Operation: Included, internal shrink wrapped NiMH battery pack

Input Voltage: 100-240V, 50-60Hz

Battery Life: 12-16 hour runtime

Measures: O2, CO2: O2

Form Factor: Benchtop

Size: 11W x 3H x 8D in (279W x 76H x 203D mm)

Weight: 3.5 lbs (1.59 kg)

Standards: CE, RoHS

Included Consumables: 400 foam seal pads, 10 luer fit needles, 10 filters

Included Documentation: Owner’s manual, NIST traceable calibration certificate

Including

Model Q30 Analyzer

Power Supply for Charging

400 Foam Seal Pads (P/N 9002)

10 Liquid and Particulate blocking filters (P/N 9028)

10 needles (P/N 9027)

Spare tubing for sample probe

USB thumb drive for downloading saved data points

Datasheet
