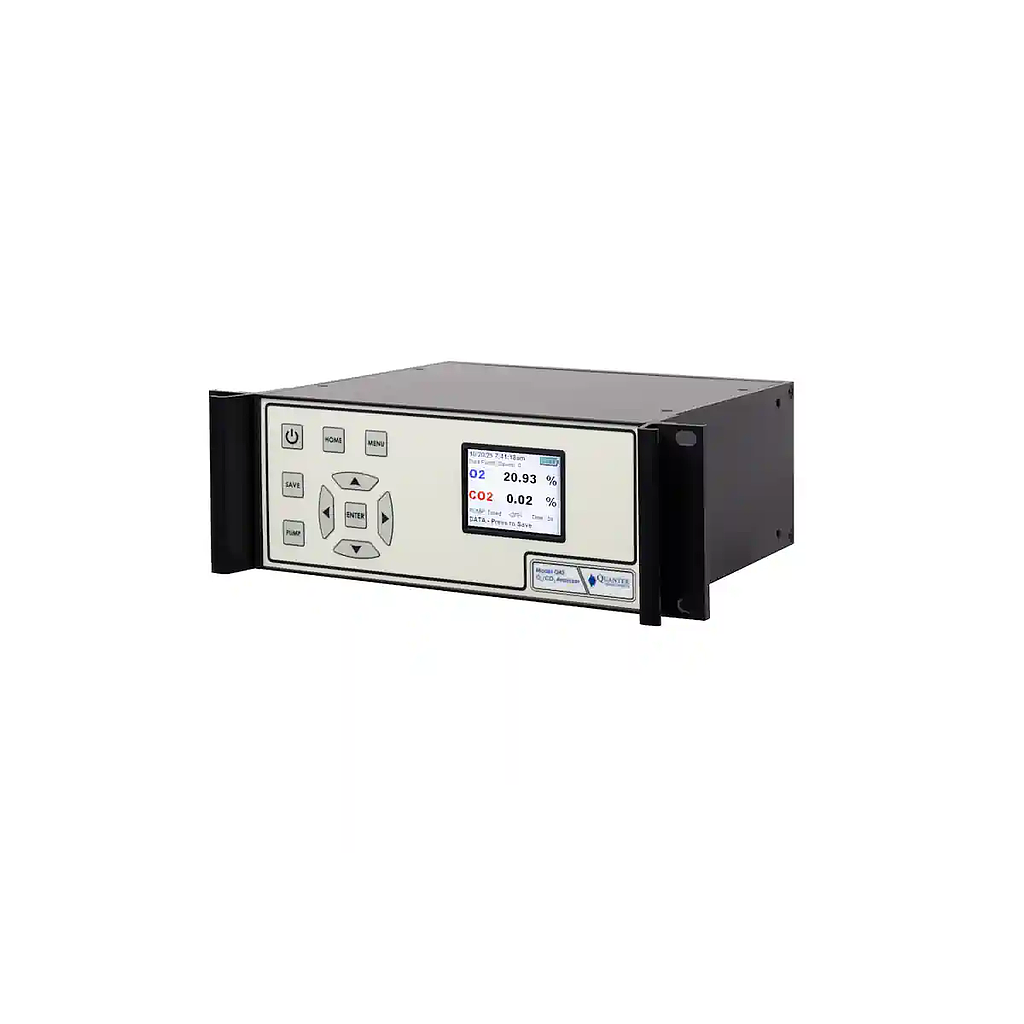

QUANTEK INSTRUMENTS Q42 Rackmount-2U O2/CO2 Analyzer (0.00 ~ 100%)

Carbon Dioxide Sensor Type: Solid-state Infrared

CO2 Minimum Detection Limit: 0.1% (0-50% or 0-100% range) or 0.01% (0-10% or 0-20% range)

Accuracy - Carbon Dioxide: ± 1% of reading, or ± 0.1% CO2 (whichever is greater)

CO2 Calibration Controls: Digital Keypad

CO2 Calibration Frequency: Every 12 months; calibration gas recommended.

Oxygen Range: 0.00 to 100%

Oxygen Sensitivity: 0.0001

Expected Lifetime (oxygen): 4-5 years

Analog Output: 0-5V both channels

Resolution: 0.0001

Accuracy: +/- 1% of the reading or 0.1%, whichever is greater

Drift: less than 0.4% per year

Oxygen Sensor Type: Proprietary Electochemical

Response Time: 20 seconds to T95

O2 Sensor Lifetime: 4-5 Years

O2 Sensor Body: Anodized aluminum (CO2) and ABS Resin (O2)

Sample Connection: Swagelok

Sample Method: Flow through (or internal sample pump optional)

Sample Pump: Optional - Internal, draws ~5cc/sec

Pump Timing: 2-20 seconds, continuous, or cycling on/off, programmable

Minimum Sample Required: 15cc

Sampling Assembly: Varies

Oxygen Calibration Controls: Digital Keypad Adjustment

Instrument Calibration: EasyCal calibration

Exhaust port: Vents to air

Power Supply: 100 to 240 VAC, internationally compatibile

Battery Operation: Optional - internal shrink-wrapped NiMH battery pack

Input Voltage: 100-240V, 50-60Hz

Battery Life: 12-16 hour runtime

Measures: O2, CO2: O2, CO2

Form Factor: Rackmount

Size: 11W x 3H x 8D in (279W x 76H x 203D mm)

Weight: 3.5 lbs (1.59 kg)

Standards: CE, RoHS

Included Consumables: 10 Filters, Extra tubing, 50cc syringe, USB thumb drive

Included Documentation: Owner’s manual, NIST traceable calibration certificate

Including

Model Q42 Analyzer

Power Supply (international adapters as necessary)

10 Liquid and Particulate blocking filters (P/N 9028)

50 cc syringe

Spare tubing for connecting to Swagelok

USB thumb drive for downloading saved data points
