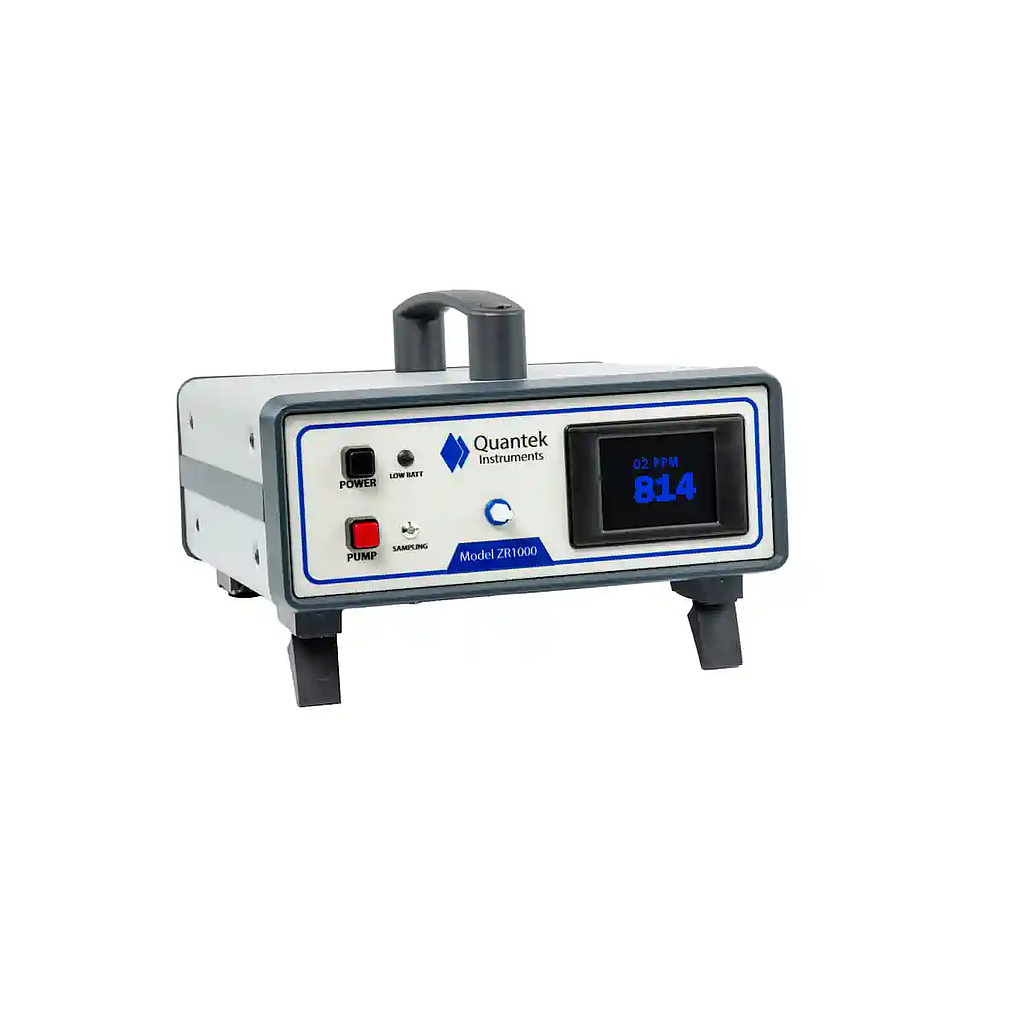

QUANTEK INSTRUMENTS ZR1000 Trace O2 Analyzer (0-1000ppm)

Expected Lifetime (oxygen): 4-5 years

Oxygen Range: 0 to 1000 ppm Oxygen

Oxygen Sensitivity: 1ppm

O2 Resolution: 1ppm

Analog Output: (optional) 0-10V

Resolution: 1 ppm Oxygen

Accuracy: 5ppm

Drift: Less than 10ppm per year

Oxygen Sensor Type: Proprietary zirconia cell, expected lifetime 4-5 years

Response Time: 7 seconds from 1000 to 100 ppm; 15 seconds from 100 to 10 ppm.

O2 Sensor Lifetime: 5-7 years

O2 Sensor Body: Stainless Steel

Sample Connection: quarter inch tubing to Swagelok fitting.

Sample Method: Pump (Optional)

Sample Pump: Optional; Internal, with adjustable timer

Pump Timing: (Optional) 2-mode pump switch (timed, or continuous)

Sampling Port: Swagelok inlet (1/8 in)

Minimum Sample Required: 100cc

Sampling Assembly: Not Available

Oxygen Calibration Controls: SPAN adjustment, zero adjustment (calibration gas recommended)

Instrument Calibration: Calibrates with standard gas; adjusters on back of analyzer

Exhaust port: Vents to air (optional rear panel Swagelok)

Power Supply: 100 to 240 VAC, internationally compatibile

Backup Power: 10 cell NiMH pack (optional)

Battery Operation: Optional

Input Voltage: 100-240V, 50-60Hz

Battery Life: 8-12 hours before recharging

Measures: O2, CO2: O2

Form Factor: Benchtop

Size: 9.8in x 4in x 10in. (249 x 102 x 254 mm)

Weight: 8 lb. (3.6kg)

Standards: RoHS, CE

Included Documentation: Owners manual (includes operating instructions with detailed calibration instructions, calibration certficate, precautions), NIST calibration certificate

Products by Gas: Oxygen

Products by Applications: Gas Flow / Process Analyzers
