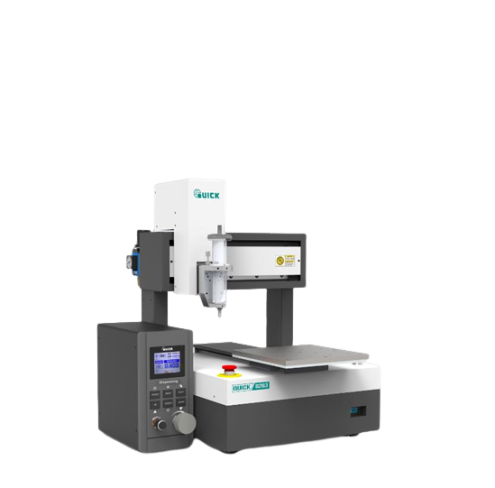

QUICK QUICK ET8283 Desktop Dispenser (200/200/50mm)

Supply Voltage: 110VAC/220VAC

Number of Axis: 3-axis

Operation Range: X/Y/Z axis: 200mm/200mm/50mm

Speed Range: X/Y axis: 0.1～600 （mm/sec)

Z axis: 0.1～300 （mm/sec）

Repeat Positioning Accuracy: ±0.01 mm

Load Capacity: Platform:5 kg; Head:2 kg

Speed Control: 3-dimensional linear, circular interpolation, automatic lifting speed adjustment with speed look-ahead

Capacity for Teaching Files: Up to 255, and 60000 for all points

Capacity for Processing Files: Up to 255

Operating Conditions: Temperature: 0～40℃; Humidity: 20％～90％（no condensation）

Dimensions W×D×H: 480*530*480mm

Weight: 23kg

Features:

The motion platform uses a unique one-piece frame structure with high loading capacity, low noise level, good stability and precise speed control

Equipped with QUICK 982D precision dispensing controller, using imported high flow precision pressure reducing valve for higher pressure accuracy, faster dispensing; built-in air storage tank to balance the instant pressure fluctuation at opening of valve for stable dispensing accuracy

For cylinder dispensing, can apply to epoxy resin, solder paste, red glue, lubricant, UV adhesive, etc.

With functions of communication, needle cleaning, starting point calibration

Optional alarm prompt for dispensing/back suction air pressure and lack of adhesive

Simple appearance, small footprint, saving space

Inlet air pressure and dispensing air pressure are adjustable, can quickly supply dispensing pressure, fast response, high dispensing precision

Emergency stop switch for safety and reliability

With hand slide valve, the air source can be quickly cut off

Displaying processing files (up to 255), equipment status, number of dispensing in real-time, the processing program can be switched by pressing buttons
