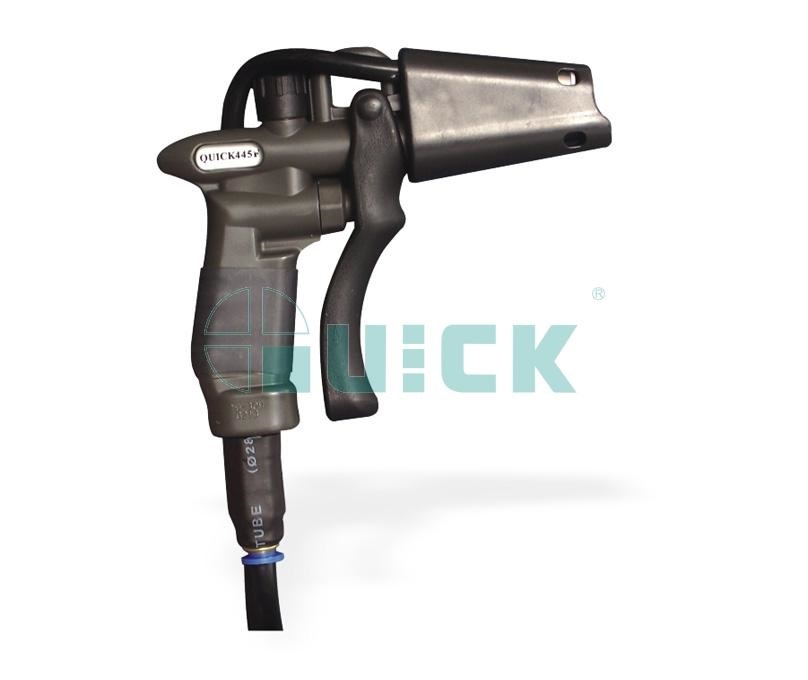

QUICK QUICK 445F Intelligent Static Elimination Equipment (Ion)

Static elimination time test

- Air pressure: 0.2Mpa

+ distance: 15 cm 30 cm 45 cm 60 cm

+ Static elimination time (S):

0.9 S1.3 S1.7 S2.1 S

1.0 S1.4 S2.1 S2.9 S

+ Ion balance (V):

-1 V+5 V+6 V0 V

- Air pressure: 0.4Mpa

+ distance: 15 cm 30 cm 45 cm 60 cm

+ Static elimination time (S):

0.8 S1.0 S1.3 S1.3 S

1.0 S1.3 S2.0 S2.5 S

+ Ion balance (V):

0 V+1 V+1 V0 V

- Air pressure: 0.6Mpa

+ distance: 15 cm 30 cm 45 cm 60 cm

+ Static elimination time (S):

0.8 S0 S1.4 S1.5 S

0.9 S1.4 S1.8 S2.7 S

+ Ion balance (V):

-2 V-4 V+6 V-14 V

Note:

1. Environment: 2 2 ° C, humidity 6 0 - 70%, the test method is based on ANSI / EOS / ESD - S3. 1-1991.

2. The ion is neutralized from 1000V to 10V and the ion balance voltage.

3. Working at 0.7Mpa air pressure, the noise is less than 80dB

Features:

1. The ion balance value can reach ±10V, which can quickly eliminate static electricity on charged objects.

2. The ion balance is stable and externally adjusted, which is simple and convenient.

3. Built-in silencer system with low noise.

4. The high voltage adopts capacitive coupling, which is safe and reliable.

5. 445 F gas volume is adjustable.

6. The 446 F-II can carry two loads at the same time.
