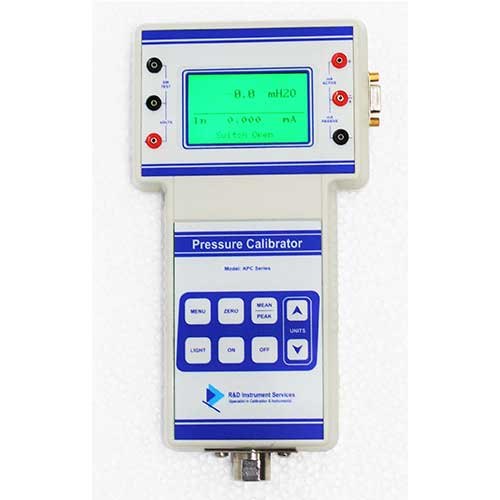

R&D Instrument APC 2 Pressure Calibrator (2 bar, 0.025%)

Name: R&D Instrument APC 2 Pressure Calibrator (2 bar, 0.025%)
Brand: R&D Instruments

ManufacturerR&D Instruments(View more products from this manufacturer)

ModelAPC 2

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Over Pressure Alarm : 20% of Full Scale upto 40 bar
5% of Full Scale for other ranges
Pressure Media : Compatible to 316 Stainless Steel
Current Terminal Input
Protection : Fuse: 100mA / 250V
Display : Graphical Display
Backlight : LED Backlight
Power Supply : Li-ion Rechargeable Battery
Low Battery Indicator : Yes
Auto Power Off : 15 minutes
Battery Backup : 19 hours
Transmitter Supply : 24V DC±10% (Loop Powered)
Pressure Connection : 1/4" BSP Female
Operating Temperature : 10 to 50°C
Instrument Casing : ABS Plastic
Instrument Dimensions : 250 mm x 145 mm x 45 mm (LxWxD)
Instrument Weight : 650 gms.
Specification:
Range: -1 bar Vacuum to 2 bar
Resolution: 0.0001 bar
Accuracy: ±0.025% F.S.
Selectable Pressure Units: bar, kg/cm², MPa, mH2O, atm,
psi, inHg, ftH2O, kPa, inH2O,
mmHg, mbar, cmH2O, mmH2O
Measurements
Facility: mA2; Range: 0 to 50 mA; Resolution: 0.001 mA; Accuracy: ±0.025% of Reading + 10 µA
Facility: Volts; Range: 0 to 30 V; Resolution: 0.001 V; Accuracy: ±0.025% of Reading + 3 mV
Standard Delivery
1. Instrument : 1 no.
2. Test Lead (2 wire) : 2 nos.
3. Charger : 1 no.
4. User Manual : 1 no.
5. Traceable Calibration Certificate
Optional
1. RS232 with RnD Cal-P Software
2. Accredited (NABL) Calibration Certificate
as per ISO/IEC 17025:2005 Standard

Datasheet
