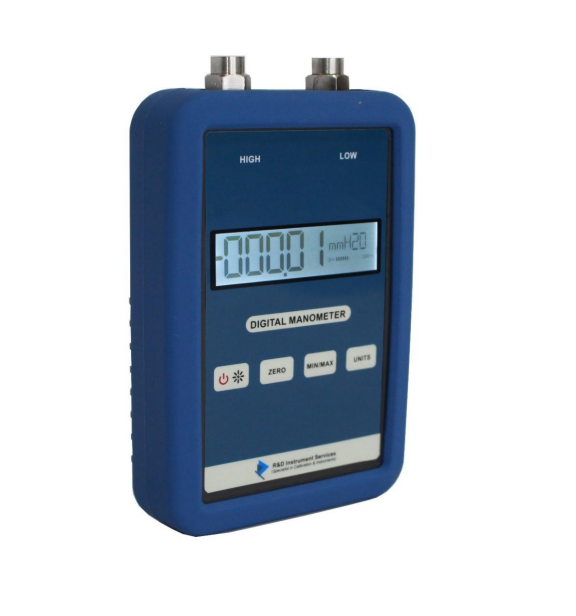

Range: ±1000 mmH2O
Resolution: 0.1
Accuracy: ±0.05 % F.S
Units: bar, psi, Kg/cm2 , KPa, MPa, mmHg, atm, mH2O, inHg, inH2O, ftH2O, cmH2O, mbar, mmH2O, Pa, torr, hpa, kg/m2, cmHg, lb/ft2
Accuracy provided: upto 0.05% FS *(differs with ranges refer range code table)
Special Function: Min/Max/ZERO
Temperature range: 0 to 50°C
Pressure media: air
Pressure unit: bar, psi, Kg/cm2 , KPa, MPa, mmHg, atm, mH2O, inHg, inH2O, ftH2O, cmH2O, mbar, mmH2O, Pa, torr, hpa, kg/m2, cmHg, lb/ft2
Pressure connections: 1/8 “ BSP female for both High & Low
Storage temperature: -10 °C to 60°C
Display: 7 segment large LCD display
Backlight: white led
Character height in display: 15mm height
Over pressure: 120%
Power supply: 6 X AAA size alkaline battery
Physical Dimension: 155 x 110 x 35 (LWD) in mm
Casing material: ABS Plastic
Battery backup: 200 hours
low battery indicator: Yes
Auto power OFF: 30 minutes
Progress Bar: 0 to 100%
Warranty: 1 year (battery not included)
Instrument weight: 400gms
Safety Standards: IEC 61000-4-2: Testing and measurement techniques – Electrostatic discharge immunity test. IEC 61000-4-3: Testing and measurement techniques – Radiated, radio-frequency, electromagnetic field immunity test
