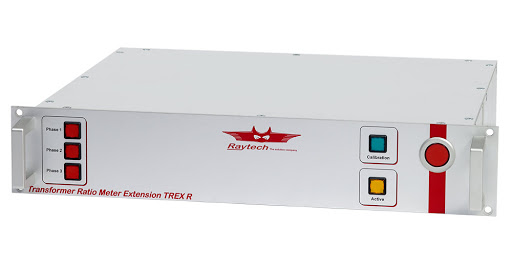

Raytech T-Rex R 3 Phase Voltage Extension to Turns Ratio Meter

Manufacturer: Raytech
Model: T-Rex R
Origin: Switzerland
Warranty: 12 months

Specifications
- Size L: 490 mm (19.3”) W: 436 mm (17.2”) H: 88 mm (3.5”), Rack Unit: 2U
- Weight 7.8 kg (17.2 lbs.)
- Input Power: 100 to 250 VAC, 50 / 60 Hz, automatic ranging
- Test Voltage: 3 phase 24 VAC 50 / 60 Hz auto selecting
- Front Panel Sealed, Anodized
- Temperature Operating –10°C to +60°C, Storage –20°C to +70°C

Output Parameters
- Voltage 3 x 24 Vac
- Voltage Accuracy(between phases): ± 0.08%
- Phase Accuracy(between phases): 0.08 Degree
- Current: 0 ... 200mA
- Turns Ratio Range: 0.8 to 4'000

Accessories:
- Power Jumper Cable
- H and X Leads 2 x 1m
- Interface cable connection to TR-MARK III
- Interface cable connection to TR-MARK II
- Instruction Manual
- Set of Accessories (rack handles, fuses)
