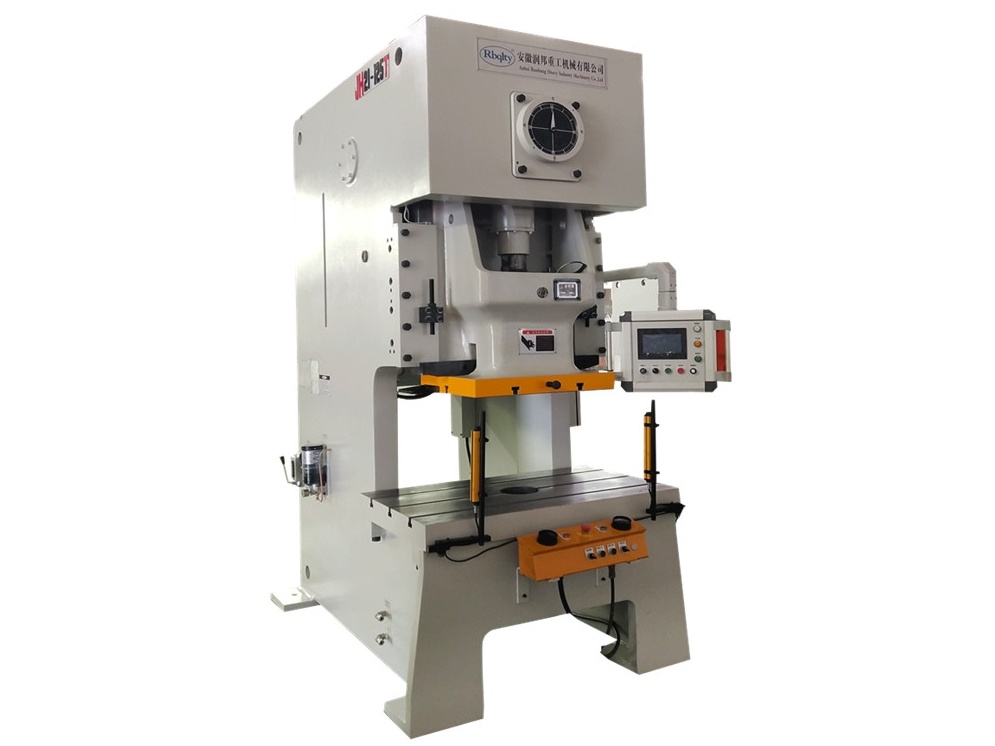

Rbqlty JH21-25 High Performance Pneumatic Power Press Machine (250KN)

Slider nominal pressure (KN): 250

Stroke of nominal force (mm): 3/2

Slider stroke (mm): 80/50

No.of strokes:

+ fixed (times/min): 100

+ variable L (times/min): 60-100

+ variable S (times/min): 80-140

Maximum closed height (mm): 205/265

Closed height adjustment (mm): 50

Slider center distance from the body (mm): 210

Slider bottom size:

+ L-R (mm): 360

+ F-B (mm): 250

Hole size of die handle:

+ Diameter (mm): 40

+ Depth (mm): 60

Working table size:

+ L-R (mm): 700

+ F-B (mm): 400

+ Thickness (mm): 80

Ground screw distance:

+ L-R (mm): 690

+ F-B (mm): 1080

Machine sizes:

+ L-R (mm): 830

+ F-B (mm): 1390

+ Height (mm): 2120

Motor power (solid/variable) (KW): 2.2/3

Weight (kg): 2600

Using air pressure (Mpa): 0.5
