Test mode: AC/DC
Voltage test range: 0.00~100.00KV
Voltage accuracy: ±(5%+5 words)
Leakage current test (AC): 0~100mA
Range (DC): 0~50mA
Test current accuracy: ±(5%+5 words)
Transformer capacity: 10000VA
Time test range: 0-999S continuous setting, 0=continuous
Output waveform: 50Hz sine wave
PLC: Optional
Host dimensions (D*H*W): 540*925*650mm
Flatbed dimensions:
High-voltage flatbed truck part: 345*1070*445mm
High-voltage capacitor flatbed truck part: 480*820*700mm
Weight
Main unit part: 89.05kg
High-voltage flatbed truck part: 113kg
High-voltage capacitor flatbed truck part: 15kg

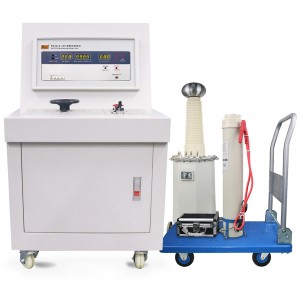

Structure: Cabinet type machine (main unit) + flatbed truck (high voltage part)
Accessories: Power cord RK00051, high voltage test cord RK00015, DC test box RK00077, RK00056 test cord, RK00052 test cord, cabinet front and rear doors/power switch key, RK26105 discharge stick RK00062 (for RK-100 series)
