Test resistance: 10KΩ～5TΩ
Test accuracy: I＞10nA ±2% I＜10nA ±5% I＜1nA ±10%
Output voltage
0.1-500V
＜10V 0.01Step adjustable
＞10V 0.1Step adjustable
Voltage accuracy: ±1%+0.5V

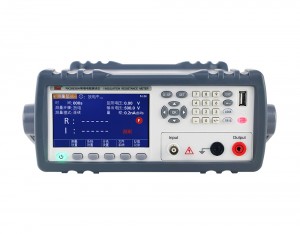

Display mode: 4.3-inch color LCD screen
Range mode: Manual / automatic
Measuring speed: Fast speed: 30 times / S; slow speed: 8 times / S
Sorting: The three block is qualified, the two gear is unqualified. Single point sorting and interval sorting can be selected.
Trigger: Internal trigger, manual trigger, external trigger, foot switch trigger
Waveform scanning: R-V、R-I Graph scan test function
Storage: Internal and external U disk of instrument
Standard interface: RS-232C interface Handler(PLC) interface USB HOST, USB DEVICE
Working environment: 10℃～40℃，≤80%RH
Power requirements: AC220V±10%，50Hz/60Hz±5%
Weight: 4kg
External dimension: 380*255*105mm
Accessories: Power line, test line, RS232, USB communication line; Handler junction box, foot switch (optional)
