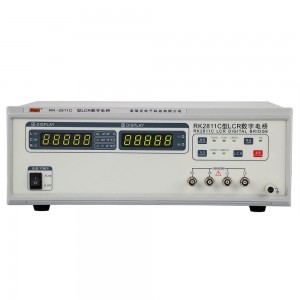

Rek RK2811C Digital Bridge Tester (10 kHz)

Measurement parameters: L-Q，C-D，R

Test frequency: 100Hz，1kHz，10kHz

test level: 0.3Vrms

test accuracy: 0.25%

Display range

L:

100Hz 1μH～9999H

1kHz 0.1μH～999.9H

10kHz 0.01μH～99.99H

C:

100Hz 1pF～9999μF

1kHz 0.1pF～999.9μF

10kHz 0.01pF～99.99μF

R: 0.0001Ω～9.999MΩ

Q: 0.0001～9999

D: 0.0001～9.999

Test speed: 8 times/sec

Equivalent Circuit: series, parallel

Range method: automatic, hold

Calibration function: Open circuit, short circuit clear

test end: 5 terminals

Other functions: Protect user parameter settings

Display method: direct reading

working environment: 0℃～40℃，≤85%RH

Power requirements: 220V±10%，50Hz±5%

Power consumption: ≤20VA

Dimensions: 365×380×135mm

weight: 5kg

Accessories: Power cord, test clip, four-terminal test, socket short circuit
