Wiring method: AC

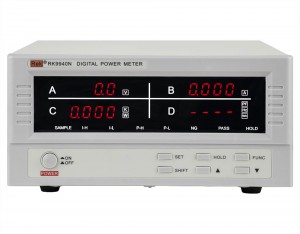

Display: LED digital screen with four windows displays V, A, W, PF, Hz, KW/h
Measurement items: Voltage V, current A, active power W, power factor PF, frequency Hz, electric energy KW/h Voltage V, current A, active power W, power factor PF, frequency Hz
Input voltage: 0～600V
Input current: 0～8A / 7～40A
Power (P): 24KW
Power factor (PF): ﹣1.000～+1.000
Test frequency: 45Hz ～ 65Hz (refers to the frequency that the tester can detect)
Electric energy accumulation range: 0～1000KW/h
Basic accuracy
Voltage/Current: ± (0.4% reading + 0.1% range)
Resolution
Voltage: 0.1V
Current:
1mA (current less than 10A)
10mA (current greater than 9.999A)
Alarm function: Alarm when current and power exceed upper and lower limits (time limit adjustable)
Communication function: RS232 (DB9) interface (optional)
Measurement speed: 2 times / second
Lock function: Used when data fluctuates, convenient for reading
Working power: ≤AC 220V ±20%, 50/60Hz
Power consumption: <8W (220V, 50Hz)
Dimensions (DxWxH): 365*295*195mm
Weight: 2.8kg
Standard: PC software (download from official website), power cord
Optional: RS232 communication cable RK00002
