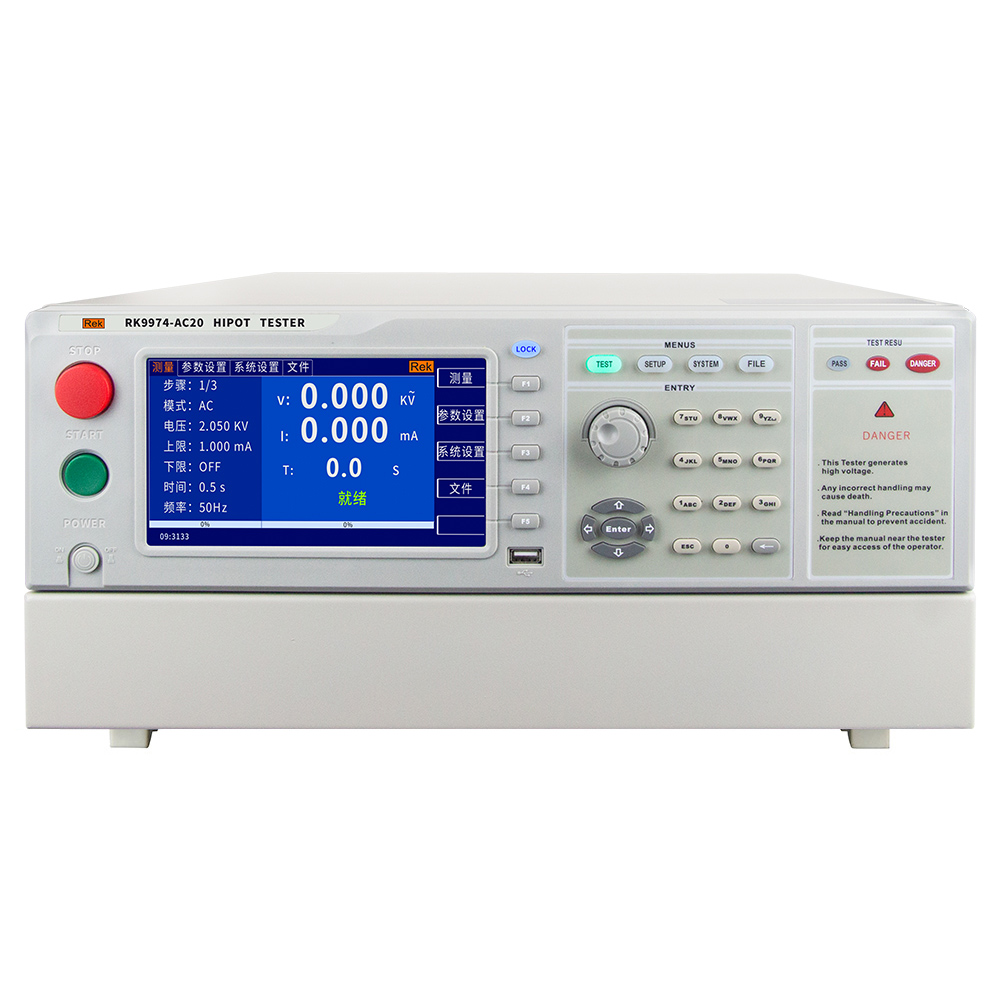

Voltmeter
scope: AC(0.50～20.00)kV
Accuracy /setting error: ±(1.5%+5 characters)
Ammeter
Measuring range: AC 0～20mA
Measurement accuracy: ±(1.5%+5 characters)
Timer
scope: 0.0S -999S OFF=Continuous test
Minimum resolution: 0.1S
Testing time: 0-999S continuous setting, 0=continuous test
Arc Detection: 0-20mA
Output frequency: 50Hz/60Hz
Operating temperature: 0-40℃ ≤75%RH
Power Requirements: 220±10% 50Hz/60Hz±3Hz
interface: Standard RS232, RS485, USB, PLC
Screen: 7-inch TFT LCD screen
Overall volume (D × H × W): 673*230*440mm
weight: 56.6KG
Random standard accessories: Power cord RK00001, RS232 communication cable RK00002, RS232 to USB cable RK00003, USB to square port cable RK00006, host computer (official website download), high voltage test line RK00015, anti-backflow box
Optional accessories: RK00031USB to RS485 female serial cable industrial grade cable 1.5 meters long, RK00070 serial port option LAN port
