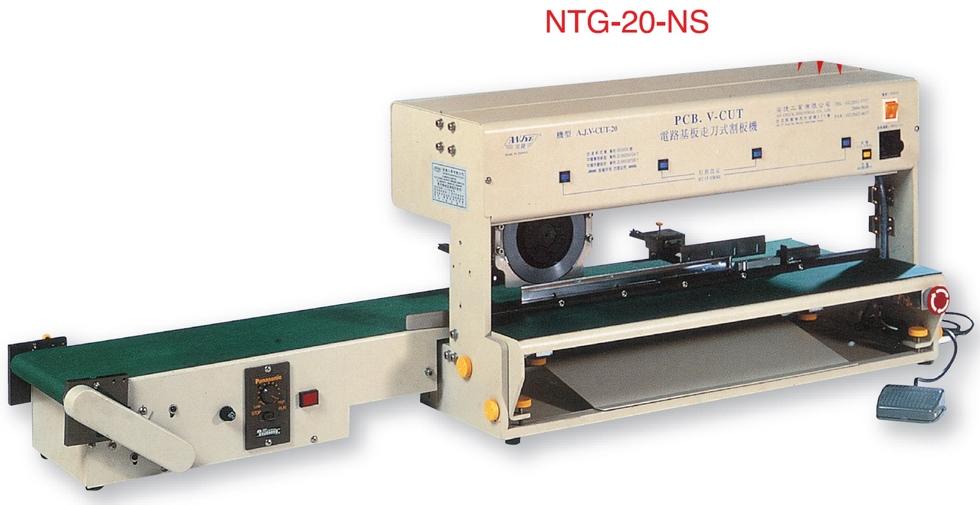

REN THANG NTG-20-NS Blade movement PCB depaneling machine

- Power: 110V/60Hz; 220V/50Hz

- Machine Dimension (L x W x H)(mm): 1250x400x400

- Machine N.W: 100kgs

- Feasible PCB length: max 400mm

- Feasible PCB width: Unilimited

- PCB thickness (A): 0.4 - 2.0mm

- Depth (B) and Leftover PCB(C): 1/3*(A)

- PCB material: Any except aluminum board

- Edge from Groove: at least 2mm

- Height of parts on PCB: Max 20mm

- Height of parts under PCB: Max 10mm

- Working speed, VR: 0-100

- Feeding direcetion: From left to right. back and forth

- PCB supportin platform: Adjustable up to linear blade level

- Blade spec.: up: 145mm. down: 500mm

- Blade-upper: Rolling&moving blade

- Blade-bottom: fixed bottom trail

- Blade type: Round, like Pizza slider

- Operation: Controlled by foot switch

- Illumination lamp Features: yes

- Features: conveyor belt: leftward or rightward (one way) Link to main production line.
