Width: mm
Height: mm
Length: mm
Fall Time: 100 us
Rise Time: 100 us

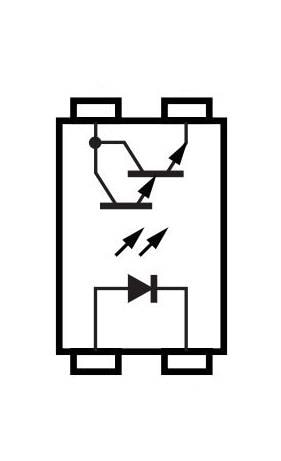

Output Type: NPN Photodarlington
Unit Weight: 260 mg
Configuration: 1 Channel
Mounting Style: SMD/SMT
Isolation Voltage: 5000 Vrms
Number of Channels: 1 Channel
If - Forward Current: 10 mA
Vf - Forward Voltage: 1.17 V
Vr - Reverse Voltage: 6 V
Current Transfer Ratio: 2000 %
Pd - Power Dissipation: 350 mW
Maximum Collector Current: 200 mA
Current Transfer Ratio - Max: 2000 %
Current Transfer Ratio - Min: 200 %
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 40 V
Maximum Collector Emitter Saturation Voltage: 1 V
