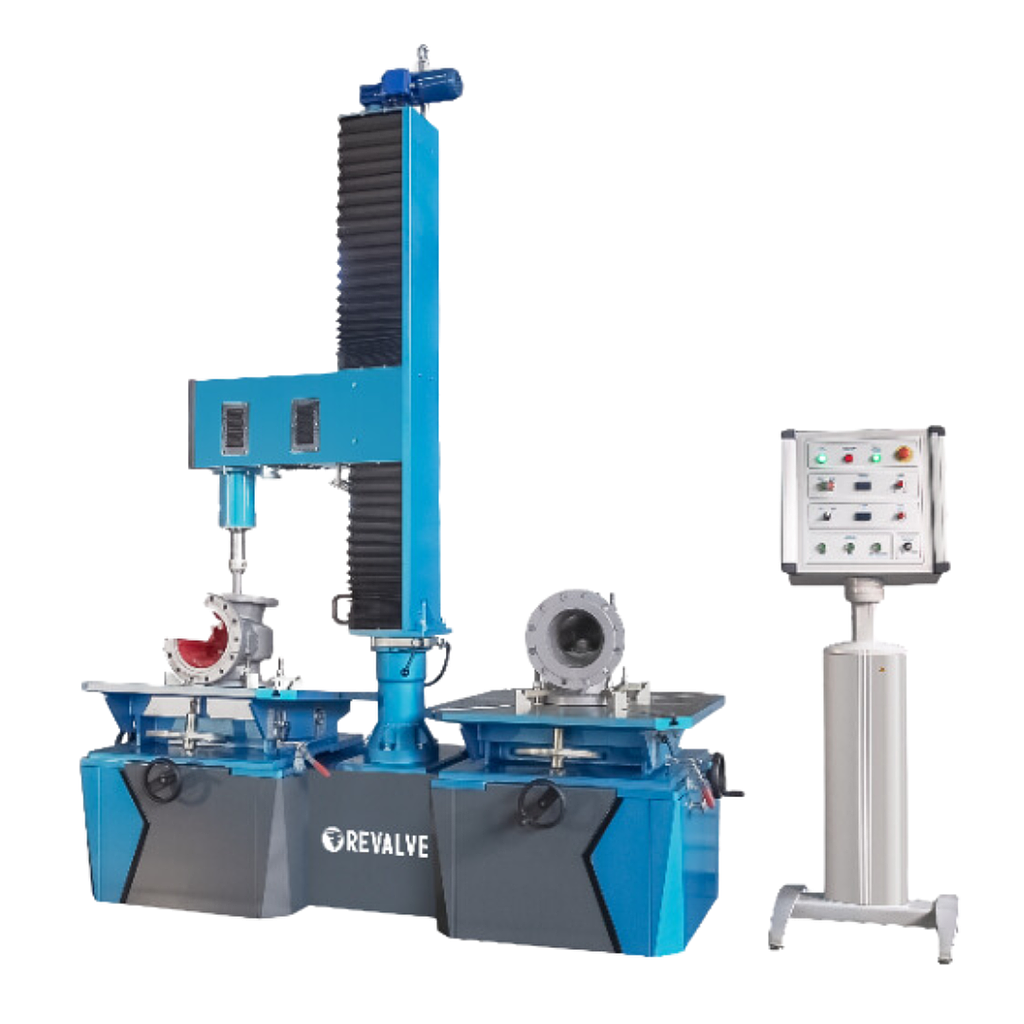

Revalve SPSH-600-NN Machines for grinding & lapping of the valve flat seats and sealing surfaces

Name: Revalve SPSH-600-NN Machines for grinding & lapping of the valve flat seats and sealing surfaces
Brand: Revalve

ModelSPSH-600-NN

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specifications:

Valve range, DN, mm (″): 50…600 (2...24)

Maximum diameter of the mounted valve flange (″): 890 (36)

Maximum face-to-face length of the mounted valve(″): 1150 (46)

Maximum weight of the mounted part: 1000

Dimensions of the table working surface(″): 900х900 (36x36)

Tilt angle of the table: 0…12 degrees

Spindle rotation speed adjustment: stepless

Spindle rotation speed: 14…200 rpm

Machined surface roughness: 0,2…0,4μm

Power consumption: 2,6 kW

Power supply: 400/50 V/Hz

Overall dimensions (LхWхH)(″): 2500х900х3025(98x41x119)mm

Weight (with tooling package): 2120kg
