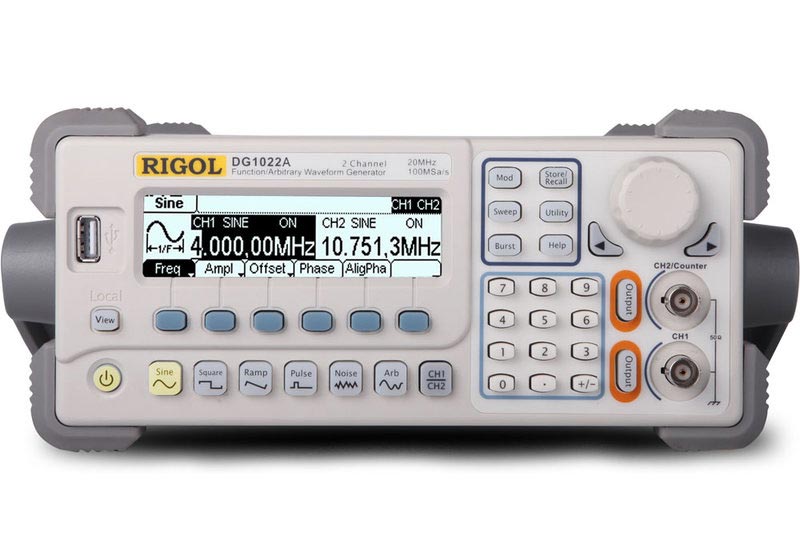

Waveform Generators Rigol DG1022A (25MHz)

Name: Waveform Generators Rigol DG1022A (25MHz)
Brand: RIGOL

ManufacturerRIGOL(View more products from this manufacturer)

ModelDG1022A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Channels :2
Signal Output: Sine, Rectangle, Pulse, Ramp, 48 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise
Vertical Resolution : 14 bit (Channel 1)
10 bit (Channel 2)
Amplitudes :
Channel 1:
≤ 20 MHz: 2 mVpp ~ 10 Vpp (50 Ω)
> 20 MHz: 2 mVpp ~ 5 Vpp (50 Ω)
4 mVpp ~ 20 Vpp (high impedance)
Channel 2:
2 mVpp ~ 3 Vpp (50 Ω)
4 mVpp ~ 6 Vpp (high impedance)
DC Offset :
Channel 1:
±5 V (50 Ω)
±10 V (high impedance)
Channel 2:
±5 V (50 Ω)
±10 V (high impedance)
Sample Rate : 100 MSa/s
Frequency Range Sine : 1 µHz - 25 MHz
Frequency Range Rectangle : 1 µHz - 5 MHz
Frequency Range Pulse : 500 µHz - 5 MHz
Frequency Range Ramp : 1 µHz - 500 KHz
Frequency Range Arbitrary : 1 µHz - 5 MHz
Frequency Range Noise : 5 MHz (-3db)
Resolution : 1 µHz
Display : Monochrome LCD
Resolution : 256 × 64 Pixel
Interfaces- USB-Host &- USB for a PC connection
Dimensions232 mm × 288 mm × 108 mm
Weight2.7 kg (5.95 lbs)
Supported operation systemsWindows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)
Manufacture : Rigol - Trung Quốc

DG1000 Series Function/Arbitrary Waveform Generators

DG1000 series function/arbitrary waveform generators use Direct Digital Synthesis (DDS) technology. They could generate accurate, stable, clean, low distortion signals.

Features and Benefits

Adopt advanced DDS technology; dual channel output; 100 MSa/s maximum sampling rate; 14 bits vertical accuracy
Output 5 standard waveforms; built-in 48 arbitrary waveforms
Abundant modulation functions: AM, FM, PM, FSK, linear/logarithm sweep and burst
Abundant output and input: waveform output;synchronous signal output; external modulation source, external 10 MHz reference clock input,external trigger input
Unique channel coupling and channel copy
Built-in high precision and wide band counter, the measurement range: 100 mHz ~ 200 MHz (single channel)
Standard configuration interfaces: USB Device & USB Host, and support U-disc storage
Seamlessly interconnect with DS1000 series digital oscilloscope
Powerful arbitrary waveform editing software“UltraWave”
Support remote control by commands
A variety of display modes
Clear graphical interface
Support Chinese and English menu and input
Button-help makes information getting easier
File management (support for USB flash device and local storage)

Advanced functions
1μHz frequency resolution		2mV minimum range (50 Ohm)




200 MHz built-in frequency counter		Dual channel output



Channel coupling and copy		48 built-in arbitrary waves



Clear graphical interface		Chinese/English language interface



Backlight display		File management
