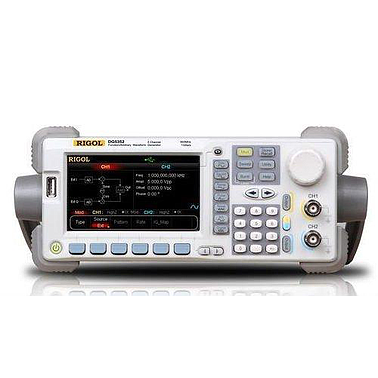

Rigol DG5251 Waveform Generator, 250MHz, 1 channel

Name: Rigol DG5251 Waveform Generator, 250MHz, 1 channel
Brand: RIGOL
Availability: OutOfStock

ManufacturerRIGOL(View more products from this manufacturer)

ModelDG5251

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Channel : 1

4.3 inches, 16M true color TFT LCD

Max.Output Frequency : 250 MHz

Max,Sample rate : 1GSa/s

Vertical Resolution : 14 bit

Max. Arb Memory Depth : 128Mpts

Standard Wareforms : Since, Square, Ramp, Pluse

Plenty of standard interfaces: double USB Hosts, USB Device, LAN, and GPIB (IEEE-488.2)

Power Supply : 100 ~ 240VAC / 45-65Hz

Temperature Range : 10oC đến 40oC

Manufacturer : Rigol - China

Documents	Release Date	Type
DG5000 Series Datasheet	2011-05-10	Datasheet
DG5000 Series User s Guide	2011-05-04	User s Guide
DG5000 Series Programming Guide	2011-02-17	Programming Guide
PA1011 User s Guide	2010-01-25	User s Guide
DG5000 Quick Guide	2010-10-14	Quick Guide

DG5000 Series Function/Arbitrary Waveform Generator

DG5000 is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator,
IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generator (optional). It provides single anddual-channel models. The dual-channel model, with two channels having complete equivalent functions and precisely adjustable phase deviation between the two channels, is a real dual-channel signal generator.
DG5000, adopting the Direct Digital Synthesizer (DDS) technology, can provide stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout bring users exceptional experience. Besides, the remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions for users.

Features and Benefits

4.3 inches, 16M true color TFT LCD
350 MHz, 250 MHz ,100MHz or 70 MHz maximum sine output frequency, 1 GSa/s sample rate, 14 bits resolution
Single/dual-channel models. The dual-channel model is isolated from the earth and within channel and channel and supports frequency and phase coupling
The 16+2 channels digital output module (optional) together with the analog channel can rebuild the more mixed signals in daily practice
Support an external power amplifier (optional) that can be configured online
Support frequency hopping output(optional) with hopping interval up to 80 ns and arbitrary editing frequency hopping patterns
14 standard waveform functions: Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haversine, Lorentz, Dual Tones and DC
Rise/Fall Time of the Pulse could be adjusted separately
Enable to edit arbitrary waveform up to 512 kpts in instrument and edit arbitrary waveforms up to 128 Mpts in PC
Support AM, FM, PM, ASK, FSK, PSK and PWM modulations
Support user-defined IQ vector signal modulation and IQ baseband/IF source output
Support Frequency Sweep and Burst output
Abundant I/O: waveform output, synchronous signal output, modulation input, 10 MHz clock input/output, trigger input/output
Enable to store and recall waveform data and instrument state, and support versatile file types
Standard configuration with 1 GBytes flash memory
Plenty of standard interfaces: double USB Hosts, USB Device, LAN, and GPIB (IEEE-488.2)
Seamlessly interconnected with RIGOL USB-TMC digital oscilloscopes for loading and reappearing waveforms
Support USB flash device storage for FAT files
Support PictBridge printer
Provide security lock hole
Support remote control through 10/100M Ethernet web
Conform to LXI-C instrument standards (Version 1.2)
Provide Chinese and English built-in help and input methods
Provide powerful waveform editing PC software
