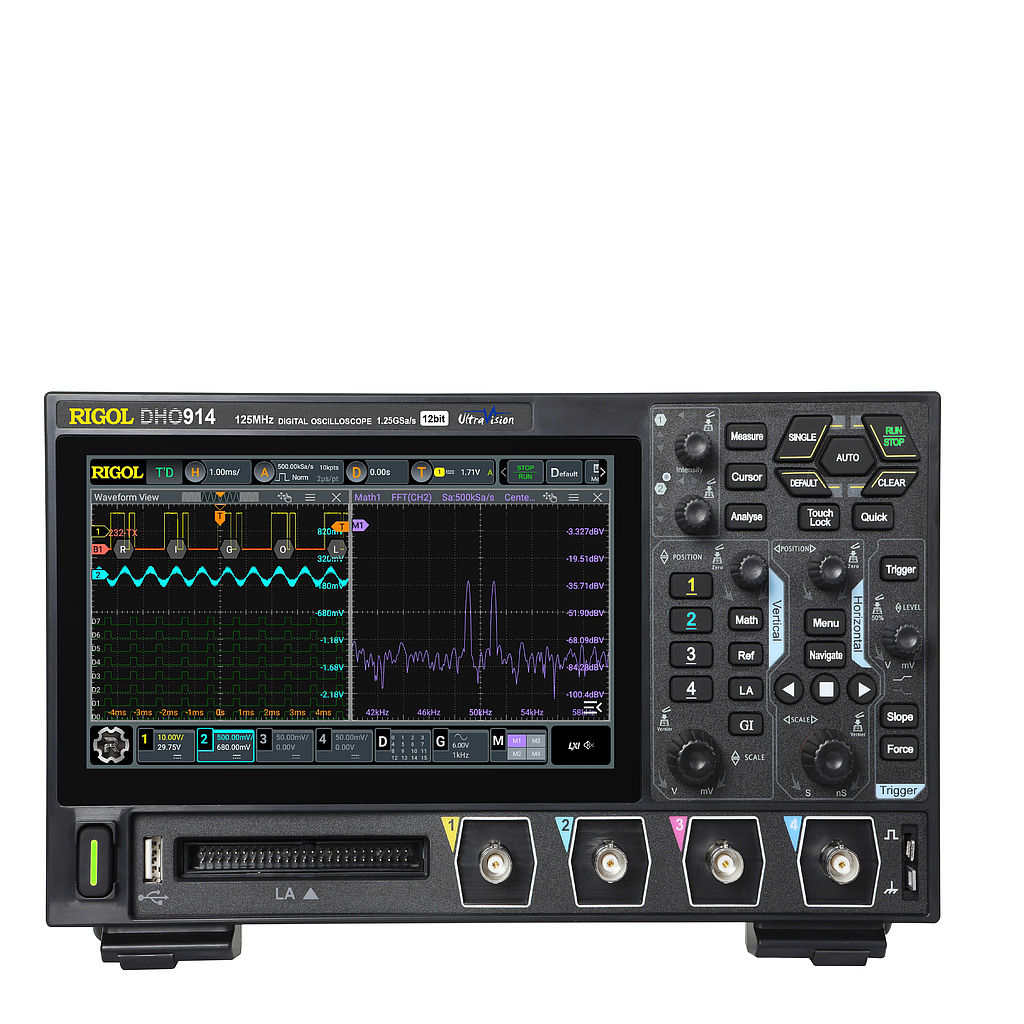

Analog Bandwidth(-3 dB): 125 MHz
Rise Time(10% to 90%, typical): ≤2.8 ns
No. of Input/Output Channels: 4 input analog channels
16 input digital channels (required to purchase the PLA2216 logic analyzer probe)
Sampling Mode Real-time Sampling
Max. Sample Rate of Analog Channel: 1.25 GSa/s (single-channel), 625 MSa/s (dual-channel), 312.5 MSa/s (full-channel)
Max. Memory Depth: 50 Mpts (single-channel), 25 Mpts (dual-channel), 12.5 Mpts (full-channel)
Max. Waveform Capture Rate: 30,000 wfms/s (Vector Mode)/ 1,000,000 wfms/s (UltraAcquire Mode)
Vertical Resolution: 12 bits
Hardware Real-time Waveform Recording and Playing: Max. 500,000 frames
LCD Size and Type: 7" capacitive multi-touch screen
Display Resolution: 1024x600
Power Supply
Power Supply Interface: Type-C
Power Voltage: DC 12 V, 4 A
Power: Max. 48 W (when connected to various interfaces, USB storage device, active probes)
Temperature Range
Operating: 0°C to 50°C
Non-operating: -30°C to +60°C
Humidity Range
Operating
below +30°C: ≤90% RH (without condensation)
+30°C to +40°C, ≤75% RH (without condensation)
+40°C to +50°C, ≤45% RH (without condensation)
Non-operating
below 60°C: ≤90% RH (without condensation)
Altitude
Operating: Below 3,000 m
Non-operating: Below 15,000 m
Non-volatile Memory
Internal Capacity: 8 GB
Reference Waveform: Displays 10 internal waveforms
Setting: Storage is limited by the capacity
USB Capacity: Supports the USB storage device that conforms to the industry standard
