Discontinued
Dislay: 6 ½ Digit DMM with USB, LAN, GPIB & Multiplexer
256 x 64 LCD
DC Voltage: 200 mV ~ 1000 V
DC Voltage Accuracy: 0.0045%
DC Current: 2 mA ~ 10 A
AC Voltage: 200 mV ~ 750 V
AC Current: 20 mA ~ 10 A
Max. Reading Speed: 50K rdgs / s
2-Wire, 4-Wire Resistance: 200 O ~ 100 MO
Capacitance Measurement: 2 nF ~ 200 μF
Continuity Test: Range is fixed at 2 KO
Diode Test: Range is fixed at 2.0 V
Measurement Frequency: 3 Hz ~ 300 kHz
Measurement Period: 3.3 μs ~ 0:33 s
Manufacturer: Rigol - China
 |
|
|
|

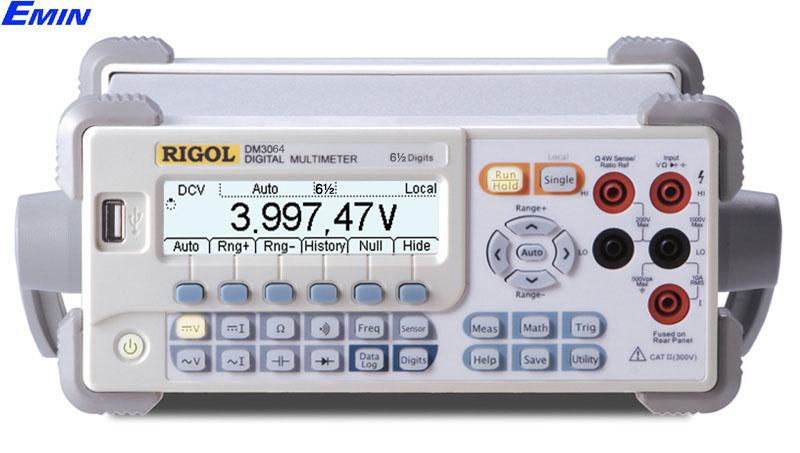

DM306X Series Digital Multimeters
DM306X series digital multimeter are designed for the needs of high-precision, multifunction, and automatic measurement, which combine Date acquire, Auto measure, Inspect, Multiple math operations and Sensor measures as well as other functions in one. DM306X series has 6 ½ digits readings resolution.
|
|
Features and Benefits
- Real 6 ½ digits readings resolution (2,400,000 Count)
- Up to 50 krdgs/s sampling rate and 2 Mrdgs Volatile storage
- True-RMS AC Voltage and Current measuring
- 16 circuits inspection function and control software (optional)
- Separately preset 10 groups of datum and 10 groups of settings for storage, as well as U disk storage and UltraLogger Infinite measurement storage
- Easy, convenient and flexible control software:
UltraLogger inspect measuring and data acquisition control software ;UltraSensor random sensor measuring control software
- Standard configuration interface: USB Device, USB Host, LAN (optional), RS-232, GPIB (optional), and support U-disc storage and Web remote control
- Support remote control commands
- 256×64 LCD
- Support double displays, Chinese and English menu
- Push-help makes information acquire more easier
- File management (support for U-disc and local storage)
|
| |
Advanced functions
|
|
|
|
|
|
|
|
|
|
|
| |
-
True 6 ½ digits resolution
（2,400,000Count）
|
-
Built-in data storage 10 groups
10 groups set up storage
|
|
|
|
|
| |
|
|
|
-
Support any types of electrical
sensor measurement
|
-
16 channel scanning function
(optional)
|
|
|
|
|
| |
|
|
|
-
Comparison of measurement
(Null)
|
-
File management
(support u disk and local storage)
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
- Backlight display Keyboard
|
| |
 |
|
For detailed performance parameters and technical specifications, refer to DM306X Series Datasheet
