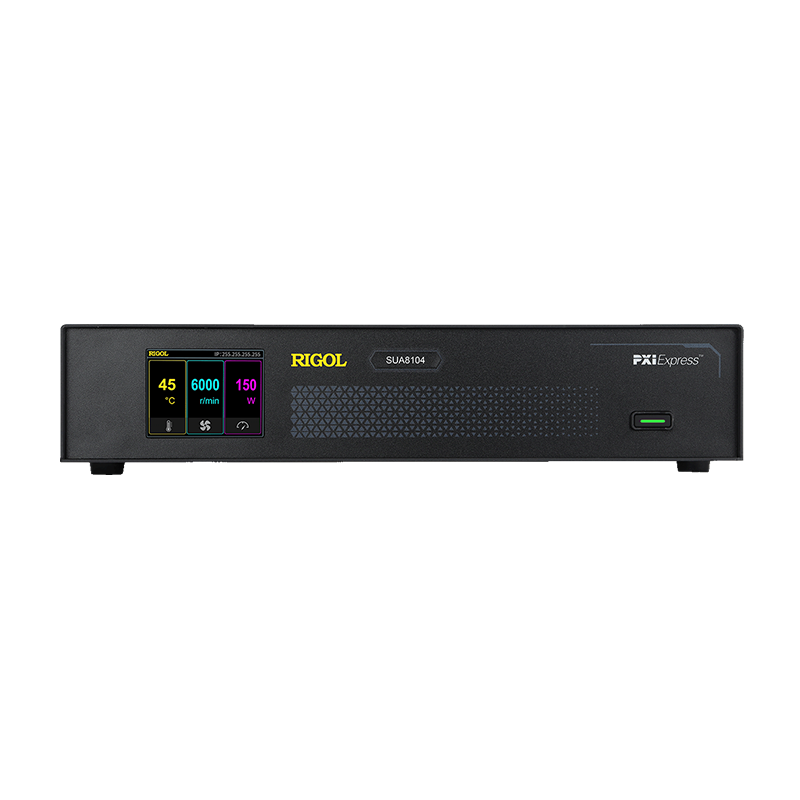

RIGOL SUA8104 Digital Transceiver (4 AWG CH)

Number of Channels:

AWG Channels: 4

Digitizer Channels : -

AWG Parameters:

Sample Rate : 8 GSa/s

Vertical Resolution : 14-bit

Bandwidth : DC-3.5 GHz

Arbitrary Waveform Length: 1 Gpts/CH

Output Type : 50 Ω, Singleended

Max. Output Amplitude : 500 mVpp

Phase Noise: -117 dBc/Hz@ 1GHz offset 10 kHz

Channel Stability : ±1 ps@12 h

Sequence Mode (Option) : Support

Number of Sequence : 3000/CH

Digitizer Parameters:

Sample Rate : -

Vertical Resolution : -

Bandwidth: -

Digital Preprocessing: -

Cache Bandwidth : -

Cache Depth : -

Output Type: -

Input Amplitude: -

Measurement Accuracy: -

Acquisition Mode : -

Master Control Parameters:

Master Control Type : CPU-controlled test

CPU : AMD V2516, 6 core, 2.1 GHz-3.95 GHz

GPU: -

Memory and Storage : 32 GB DDR4-3200, non-ECC, 512 GB SSD

Network: 10 GbE SFP+, 1 GbE RJ45

Interface : HDMI, USB3.0 x2

Operating System : Linux

Dimensions( Wx Dx H): 340 mm (W) x 235.5 mm (D) x 68 mm (H)

Optional : -
