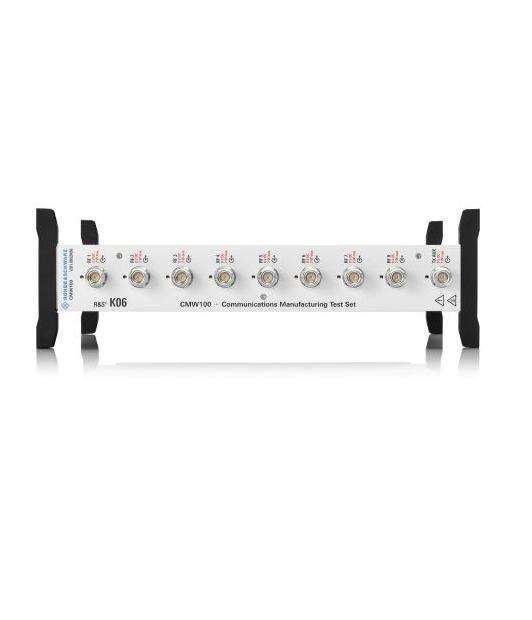

Rohde & Schwarz CMW100 Communications Manufacturing Test Set

General functions:

simultaneous receiver and transmitter testing

RF generator/analyzer, RF1 to RF8: 8 × SnapN, RF input/output to DUT

RF generator, TX AUX: 1 × SnapN, RF output

Receiver test functions:

RF generator signal is split and forwarded to 8 output ports

Every output can be switched off separately

Collective output level setting for connectors RF 1 to RF 8

Frequency-dependent attenuation (FDA) table for customer-specific corrections, separate for connectors RF1 to RF8

Transmitter test functions:

8 input signals to be multiplexed  RF analyzer

Frequency-dependent attenuat (FDA) tables for customer-specific corrections, separate for connectors  RF 1 to RF 8

RF generator

Frequency range: 70 MHz to 4000 MHz, up to 6000 MHz with the R&S®CMW-K046option

Frequency resolution: 0.1 Hz

Frequency uncertainty: same as timebase + frequency resolution

RF analyzer

Inherent spurious response:

Without input signal, 70 MHz to 6000 MHz, except 4000 MHz, 4800 MHz, 5162.5 MHz, 5600 MHz, 6000 MHz, except 100 MHz + n × 50 MHz with n = 0 to 62

Expected nominal power setting ≤ –10 dBm

Expected nominal power setting > –10 dBm

Power meter

Frequency range: 70 MHz to 4000 MHz, up to 6000 MHz with the R&S®CMW-K046 option

Frequency resolution: 0.1 Hz

Resolution bandwidths: Gaussian, 1 kHz to 10 MHz, in 1/3/5 steps, bandpass, 1 kHz to 30 MHz, in 1/3/5 steps, RRC, α = 0.1, 3.84 MHz, RRC, α = 0.22, WCDMA filter, 1.2288 MHz, CDMA filter
