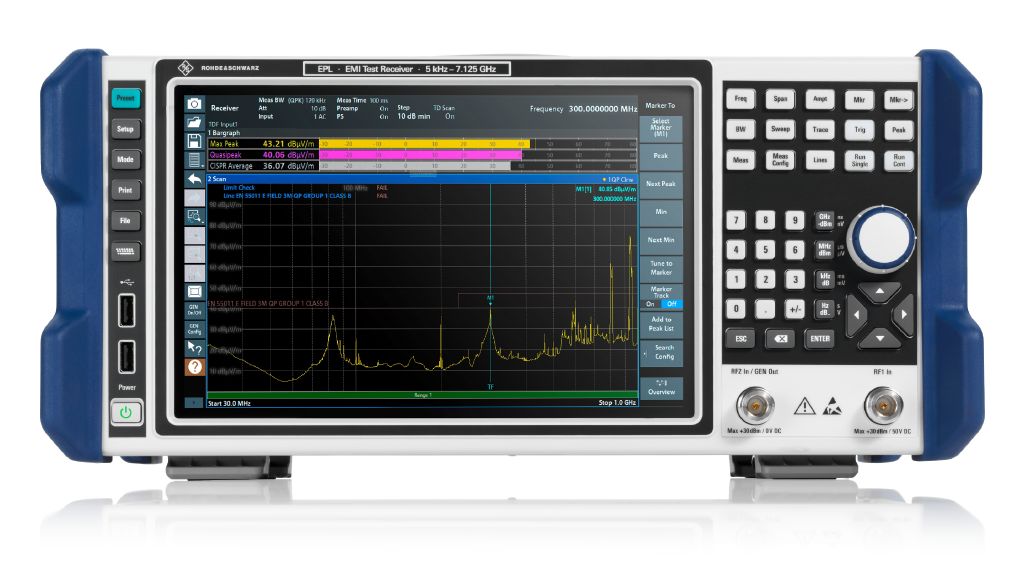

Rohde & Schwarz EPL1000 EMI test receiver (5 kHz ~ 30 MHz)

Frequency

Bandwidth: 5 kHz - 30 MHz

Resolution: 0.01 Hz

RBW: 200 Hz - 1 MHz

Measurements

DANL: -156 dBm/Hz

Scan time Quasi-Peak and CISPR average

Measurement time: 1 s / 15 s

Total time: ≤3 s / ≤17 s

Scan time Quasi-Peak and CISPR average

Measurement time: 100 ms / 1 s / 15 s

Total time: ≤500 ms / ≤1.4 s / ≤15.4 s

Other specifications

Tracking generator: optional

RF input: 50 Ω

Connector: N female

Interfaces: 4x USB, LAN, DisplayPort 1.3, User Port

Display: 10.1" TFT LCD (1280x800)

Size: 408 mm x 186 mm x 235 mm

Weight: 6.9 kg
