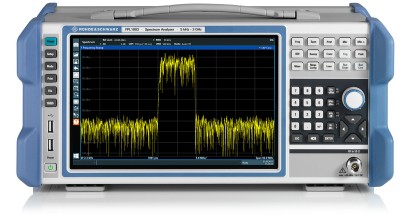

Rohde&Schwarz FPL1003 Spectrum Analyzer (5kHz~3GHz)

Manufacturer: Rohde&Schwarz

Model : FPL1003

Warranty : 12 months

Frequency range: 5 kHz to 3 GHz

Frequency resolution: 0.01 Hz

Aging per year:1 × 10–6; with R&S®FPL1-B4 option1 × 10–7

Frequency range span : 0Hz, 10hz ~ 3Ghz

Resolution bandwidth (–3 dB):

+ Sweep filter: 100 kHz to 10 MHz

+ FFT filter: 1 Hz ~ 50Khz

Phase noise: -107dBc (1Hz) @ 1Khz

DANL " -146dBm with 5 kHz ≤ f < 100 kHz, Amplifier off.

Sweep time:

+ 1us ~ 8000s @ span =0hz.

+ 1ms to 8000s @ span >=10Hz, RBW>=100Khz

Measure signal: DANL ~ +30dBm

Max input signal: 50V

Input Impedance: 50 Ω

Communication: LAN, USB và GPIB (Optional)

Display: 21 cm LC TFT color display (10.1")

Input Voltage: 100 V to 240 V ± 10%,50/60Hz

Dimension: 408x186.1x235mm, 6kg.
