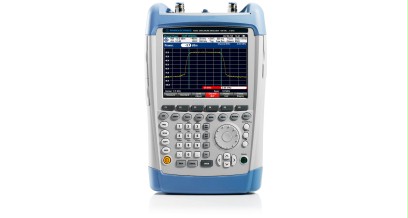

Rohde&Schwarz FSH4.04 handheld spectrum analyzer (9kHz~3.6GHz)

Manufacturer: Rohde&Schwarz

Model : FSH4.04

Warranty : 12 months

Tracking generator: No

Preamplifier: Yes

Frequency range: 9 kHz to 3.6 GHz

Resolution bandwidths: 1 Hz to 3 MHz

Phase noise: frequency 500 MHz

Detectors: sample, max. peak, min. peak, auto peak, RMS

Level measurement uncertainty: <1 dB, 0.5 dB typ.

DANL: -161 dBm, typ.-165 dBm

TOI: >+10 dBm, typ. +15dBm

Display: 6.5" color LCD with VGA resolution

Dimensions (W × H × D):194 mm × 300 mm × 69 mm (144 mm)1)

Weight :3 kg (6.6 lb)

Demodulation: GSM/GPRS/EDGE,WCDMA,TD-SCDMA CDMA2000, 1xEV-DO, LTE TĐ, LTE FĐ

VNA support: Full 2-port

Entry level model: 3.6 Ghz

Scope of delivery: Lithium-ion battery pack, USB cable, LAN cable, AC power supply, User manual
