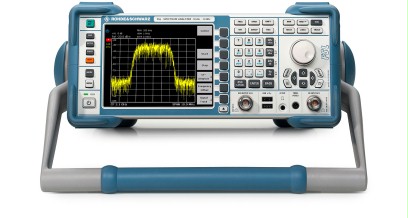

Rohde & Schwarz FSL3 Spectrum Analyzer

Manufacturer: Rohde&Schwarz

Model : FSL3 (1300.2502.03)

Warranty : 12 months

Frequency range: 9 kHz to 3 GHz

Frequency accuracy:1 × 10^-6

Giải tần span : 0Hz, 10hz ~ 3Ghz

Resolution bandwidth:

+ Standard: 300Hz ~ 10Mhz

+ 10Hz ~ 10Mhz - Optional

Signal analysis bandwidth:28 MHz

Phase noise: -103dBc (1Hz) ở 10Khz

DANL:-117dBm với 300Hz RBW

TOI: +18dBm

Sweep time:

+ 1us ~ 5us @ span =0hz.

+ 2.5 ms to 16000 s @ span 3.2Khz ~ 1.5Ghz

Measurement Signal level: DANL ~ +20dBm

Input Signal level: 50V/30dBm

Input impedance: 50 Ω

TG Generator: (Optional)

+ Frequency range: 1Mhz ~ 3Ghz

+ Signal level: -20dBm ~ 0dBm

Communication: LAN, USB & GPIB (optional)

Input voltage: 100 V to 240 V AC, 50Hz ~ 400Hz

Dimension: 408.8x158.1x465.3mm, 7kg.

Accessories: Power cable, manual

(The product is discontinous, replacing by FPL1003)
