Manufacturer: Rohde & Schwarz

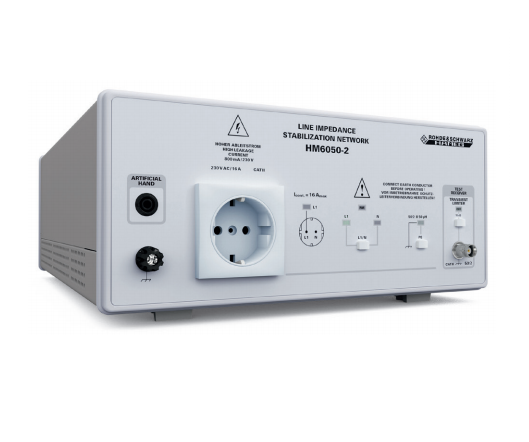

Model: HM6050-2D
Warranty: 12 months
Frequency Range: 10kHz to 30 MHz
Impedance Characteristics: Z = 50Ω/(50µH + 5Ω); Error <20% under terms of VDE 876T1
Max. Current: 16A
Line Voltage/Frequency: 230V/50…60Hz, CAT II
Artificial Hand: 220pF + 511Ω
PE (selectable): 50µH / 50Ω
Transient Limiter
Frequency Range: 150kHz to 30MHz
Transmission Loss: 10dB (+1.5/-0.5dB)
Connectors
Measurement Output: 50Ω BNC
Power Supply Socket for DUT: Schuko plug socket for: HM6050-2D (DE Version)
Artificial Hand: 4mm banana socket
Line Cord: Fixed
Miscellaneous
Operating Temperature: 10°C to 40°C
Power Supply: HM6050-2D (DE Version): 230V ±10%, 50…60Hz
Safety Class: Safety class I (IEC1010-1/VDE 0411)
Dimensions (W x H x D): 285 x 125 x 380mm
Weight: Approx. 6kg
Accessories supplied:
Line cord, Operating manual
