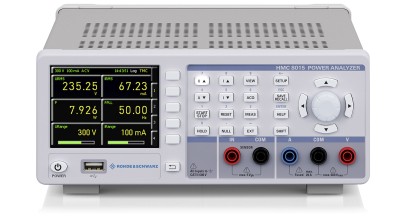

Manufacturer: Rohde & Schwarz
Model: HMC8015
Warranty: 12 months
Analog bandwidth: DC to 100 kHz
Frequency accuracy: 0.1 % of reading
A/D converter resolution: voltage and current16 bit
Basic accuracy: 0.05 % of reading
Display resolution: 5 digits, 10 updates/s
Sampling frequency: 500 kHz
Input impedance: 2 MΩ
PLL synchronization sources: U, I, external
Filters
Analog signal filter: 1 kHz
Digital filter: adaptive filter
Frequency filter: 500 Hz
Additional inputs/outputs: BNC, rear panel
Analog input: ±10 V (U peak)
Analog input accuracy: 0.5 % of reading
Analog output: ±5 V (U peak)
Digital input
Limits (PASS/FAIL): bandwidth100 kHz; PWM1 kHz; state≤ 10 Hz
Signal threshold
logical zero: 0 V to 2 V
logical one: 3 V to 24 V
Digital output: 5 V, TTL
Display: 8.9 cm (3.5") TFT (color); resolution320 × 240 pixel (QVGA)
Network connection: AC100 V to 115 V/230 V at 50 Hz to 60 Hz
Power consumption: max. 35 W, typ. 15 W
Operating temperature range: +5 °C to +40 °C
Storage temperature range: –25 °C to +60 °C
Standards: CAN/CSA-C22.2 NO. 61010-1, UL 61010-1,
DIN EN 61010-1, DIN EN 61326-1, DIN EN 55011
Common mode voltage: CAT II, 600 V (U RMS)
Dimensions: 222 mm × 88 mm × 280 mm
Weigh:approx. 3.25 kg (7.16 lb)
Warm-up time: 60 min
