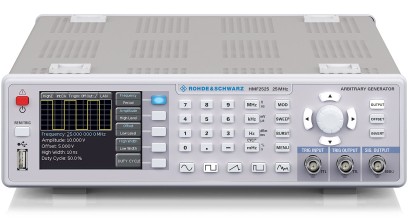

Rohde & Schwarz HMF2525 Function Generator (10mHz~12.5MHz)

Manufacturer: Rohde&Schwarz

Model : HMF2525

Warranty : 12 months

Waveform modes: sine, square, pulse, triangle, ramp and arbitrary waveforms

Frequency range: up to 25 MHz

Spurious: ±1x 10-6/ year

Output voltage: 5 mVpp to 10 Vpp (into 50 Ω); 10 mVpp to 20 Vpp (open circuit)

Total harmonic distortion: 0.04 % typ. (f < 100 kHz)

DC offset: ±5 mV to 5 V

Arbitrary waveform length: up to 256 ksamples

Arbitrary waveform resolution: 14 bit

Measurement range

Sine: 10µHz to 25MHz

Square: 10µHz to 25MHz

Pulse: 100µHz to 12.5MHz

Ramp/Triangle: 10µHz to 5MHz

Điều chế kiểu : AM, FM, PM, FSK, PWM

Mode : continuous, modulate, sweep, burst

Output Resistance : 50 Ω

Communication : USB và LAN, GPIB (Optional)

Crisp color display: 3.5" color TFT QVGA

Power supply : 105V ~ 253V, 50/60Hz

Dimension : 285x75x365mm, 3.6kg

USB/RS-232 dual interface for remote control

Accessories supplied: Line cord, Operating manual, Software

Datasheet
