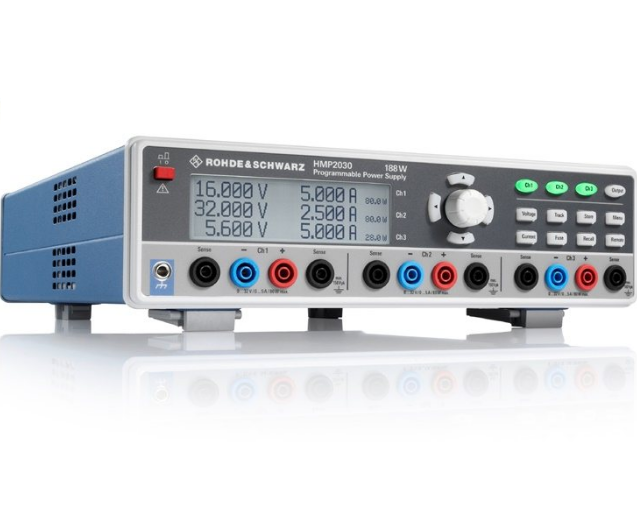

Number of output channels: 3
Output voltage/CH: 0 V to 32 V
Output current/CH: 5A
Total output power: 188 W
Max voltage in series : 96V
Max current in parallel: 15 A
Setting resolution: < 1 A: 0.1 mA; ≥ 1 A: 1 mA
Voltage Ripple(3Hz ~ 20Mhz) : < 1.5 mV (RMS), < 1 mA (RMS)
Load regulation : < 0.01 % + 2 mV, < 0.01 % + 250 μA
Line regulation : < 0.01 % + 2 mV, < 0.01 % + 250 μA
Setting accuracy: < 0.05 % + 5 mV, < 0.1 % + 5 mA
Display : LCD
Communication : LAN/USB và GPIB (Optional)
Power supply : 115 V/230 V (±10 %); 50/60Hz
Dimension : 285mm × 95mm × 405mm, 7.8kg
Scope of Delivery: Power Cable, Manual
