Manufacturer: Rohde&Schwarz

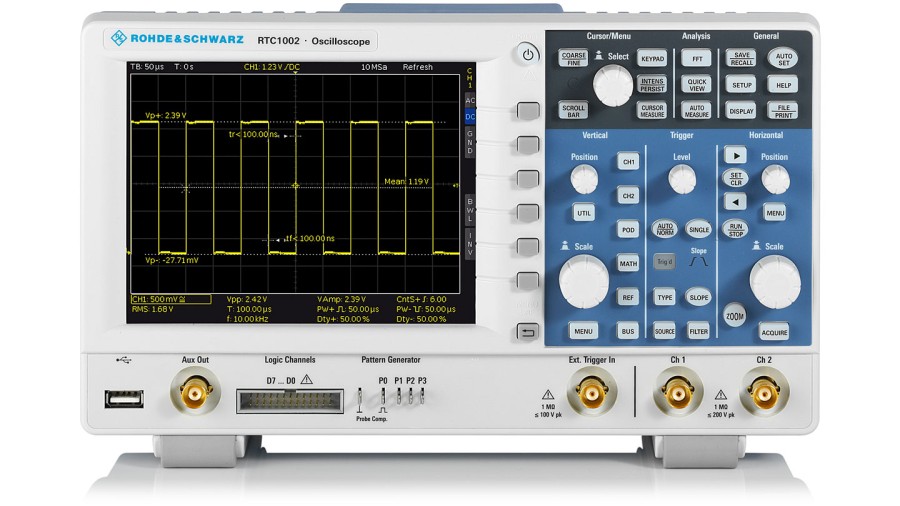

Model: RTC1002
Warranty: 12 months
Bandwidth: 50 MHz
Channels: 2
Max. Sample Rate: 2 Gsample/s
Max.Memory Depth: 2 Msample
Rise time : 7ns
Input Impedance : 1 MΩ ± 2% || 14 pF ± 2 pF
Voltage Sensitivity : 1 mV/div ~ 10 V/div
Timebase range: 1 ns/div to 100 s/div
DC Accuracy : 3%
ADC Resolution : 8 bit
MSO (Optional): 8 digital channels, upgradeable, 0.5 Gsamples, 0.5Msample
Signal Generator (Optional) : 100mHz ~ 50Mhz
Multifunctional: DVM, Counter, waveform generator, pattern generator, component tester
Screen:6.5" VGA color display (640 × 480 pixel)
Interfaces:1 x USB host, USB device, LAN
Dimensions(W × H × D):285 mm × 175 mm × 140 mm
Weight:1.7 kg (3.75 lb)
Scope of delivery: User manual; Power Cord; R&S RT-ZP03 single-ended pasive probes for each channel
